19/11/2024

Fixing tie for hole (round), inside serrated, ∅1-45mm, grey, 500pcs.
Art.-Nr. 156-01155 | T50RDHA8.4x20-PA46-GY |  Details

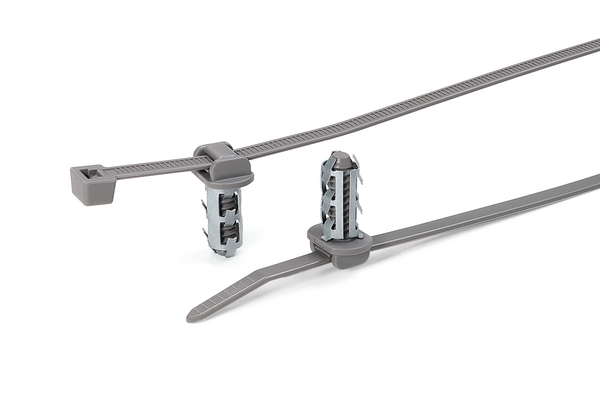

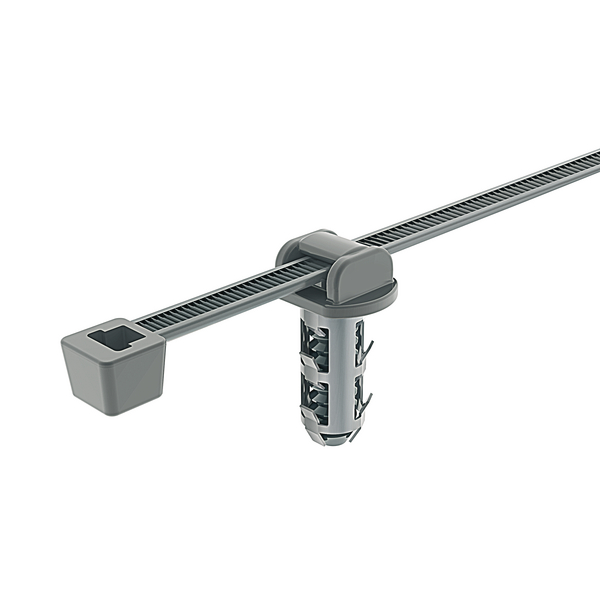

2-piece fixing tie for blind holes.

    • Pre-assembled 2-piece fixing tie with deep hole anchor
    • The high 'pull off' forces are due to the integrated metal clamp
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt
    • Suitable for use within blind holes with or without thread
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Grey (GY)
    Identification Plate Position none
    Key product features deep hole anchor
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION T50RDHA8.4x20-PA46-GY

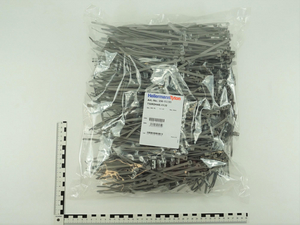

    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family Deep hole anchor DHA5.5 - DHA8.4
    Product Group 2-piece fixing ties with deep hole anchor, with disc, for round holes
    Short Description 2-Piece fixing tie 390x4.6 mm, with deep hole anchor, PA66, black
    Type T50RDHA8.4x20
    Variant Inside Serrated
    Bundle Diameter max (metric) 45mm
    Bundle ∅ 1-45mm
    Bundle ∅ min. 1mm
    Height (H) 24.65mm
    Length (L) 202.0mm
    Min.Tensile Strength 225N
    Weight/Unit 0.00292kg
    Width (W) 4.6mm
    for Hole ∅ (FH) 8.3 - 8.5 mm
    for Panel Thickness min - max 20
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +150 °C
    Operating Temperature Foot Part (Metric) -40 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026470719
    Packaging 1 - Height (m) 0.2m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.03555m³
    Packaging 1 - Weight (kg) 1.489135kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 9.75481kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 138.048kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
