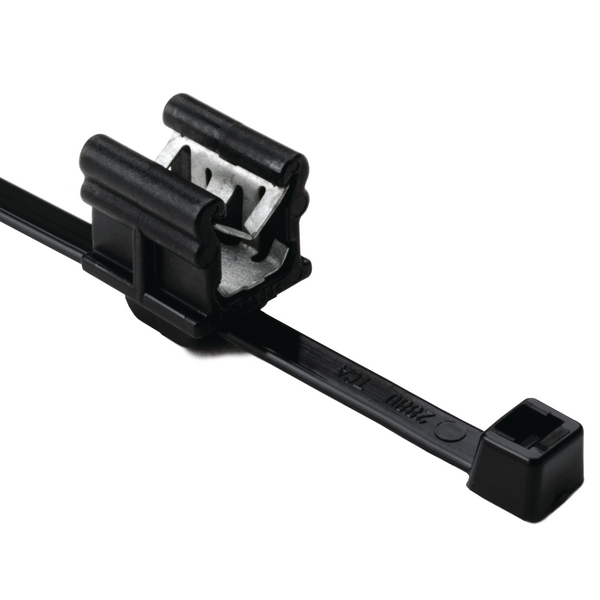

Fixing tie for edge, inside serrated, ∅5.0-50.0mm, black, 500pcs.
Art.-Nr. 156-00537 | T50REC19-PA66HS/PA66HIRHS-BK |  Details

Cable tie with edge clip eliminates the need for drilling mounting holes, simplifying installation.

    • Pre-assembled 2-piece fixing tie with EdgeClip
    • Cable tie head can be moved after bundling
    • For minimum bundle diameters of 1 mm
    • For edges of 3 – 6 mm
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Description Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 3.0 to 6.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution.
    Fixation Method Edge Clip
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Key product features for narrow bundling
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50REC19-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family EdgeClip-Series, 3.0 - 6.0 mm, top fixing
    Product Group 2-piece fixing ties for edges
    Type T50REC19
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 5.0-50.0mm
    Bundle ∅ min. 5.0mm
    Height (H) 1.2mm
    Height (H2) 17.8mm
    Length (L) 202.0mm
    Length (L2) 14.0mm
    Min.Tensile Strength 225N
    Panel Thickness max. 3.0 - 6.0mm
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    Width (W2) 14.8mm
    for Panel Thickness min - max 3 - 6 mm
    for Panel Thickness min - max 0.1 - 0.2 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C, -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin DE
    GTIN-13 / EAN 4031026324784
    Packaging 3 - Type box
    Packaging 3 - Weight (kg) 15.19kg
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
