09/04/2025

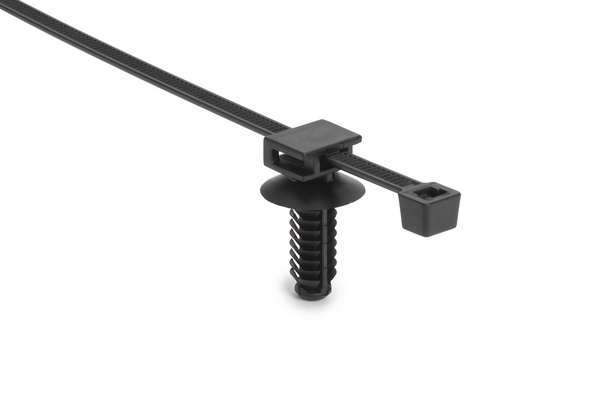

Fixing tie for hole (round), inside serrated, ⌀4.0-50.0mm, black, 2000
Art.-Nr. 156-02768 | T50RFT6.5SDLGSET-PA66HIRHSUV-BK |

Copied

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Fir Tree
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50RFT6.5SDLGSET-PA66HIRHSUV-BK
    Pack Cont. 2000
    Package Content packed in box
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RFT6.5SDLGSET
    Variant Inside Serrated
    Bundle ⌀ 4.0-50.0mm
    Bundle ⌀ max. 50.0mm
    Bundle ⌀ min. 4.0mm
    Height (H) 28.07mm
    Length (L) 202.0mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.6 - 12.5mm
    Width (W) 7.80mm
    for Hole ⌀ (FH) 6.1 - 6.7 mm
    for Panel Thickness min - max 0.6 - 12.5 mm
    for Panel Thickness min - max 0 - 0.5 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026732183
    Packaging 3 - Height (m) 0.20002499999999998m
    Packaging 3 - Length (m) 0.51117499999999995m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0318m³
    Packaging 3 - Width (m) 0.31115m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
