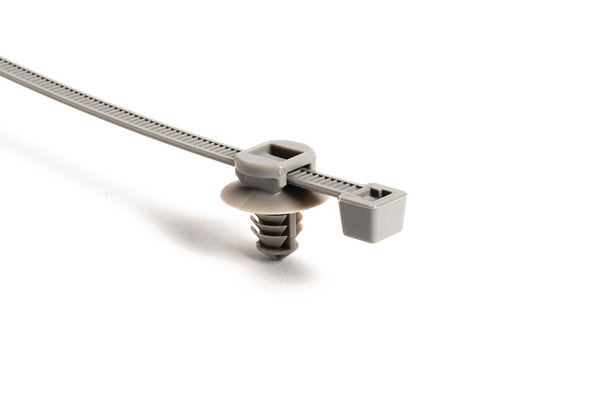

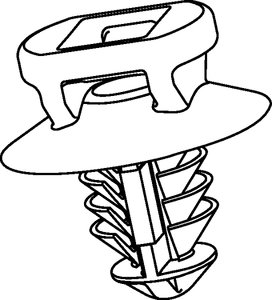

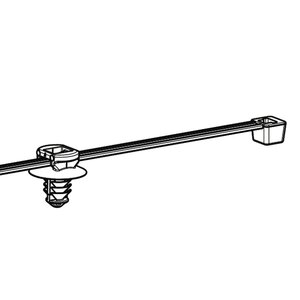

Fixing tie for hole (round), inside serrated, ∅2.0-50.0mm, grey, 5000pcs.
Art.-Nr. 156-02613
| T50RFT6ASET-PA46-GY
|
Details
Cable Tie | Polyamide 4.6 (PA46) |
Colour | Grey (GY) |
Fixation Method | Fir tree for round holes |
Identification Plate Position | none |
Material | Polyamide 4.6 (PA46) |
PART DESCRIPTION | T50RFT6ASET-PA46-GY |
Pack Cont. | 5000pcs. |
Package Content packed in | bag |
Releasable Closure (Yes/No) | No |
Tie Closure | plastic pawl |
Type | T50RFT6ASET |
Variant | Inside Serrated |
Bundle Diameter max (metric) | 50.0mm |
Bundle ∅ | 2.0-50.0mm |
Bundle ∅ min. | 2.0mm |
Height (H) | 16.4mm |
Length (L) | 203.2mm |
Min.Tensile Strength | 225N |
Panel Thickness max. | 0.6 - 3.5mm |
Weight/Unit | 0.0019kg |
Width (W) | 16.0mm |
for Hole ∅ (FH) | 6.1 - 7.1 mm |
for Panel Thickness min - max | 0.6 - 3.5 mm |
for Panel Thickness min - max | 0 - 0.1 " |
CE Certification | No |
CSA Certified | No |
ELV compliant (Article 4 - 2) | YES |
Hazardous Goods | No |
Operating Temperature | -40 °C to +130 °C |
ROHS compliant | Yes |
Specifications |
![]() |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | No |
UL Recognized (US and Canada) | No |
UV-Stabilised | No |
|
|
Country of Origin | US |
Customs Number | 39269097 |
GTIN-13 / EAN | 4031026638454 |
Packaging 3 - Height (m) | 0.2159m |
Packaging 3 - Length (m) | 0.606425m |
Packaging 3 - Qty | 5000 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.052m³ |
Packaging 3 - Weight (kg) | 10.36kg |
Packaging 3 - Width (m) | 0.396875m |
Packaging 4 - Height (m) | 1.224m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 75000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.175m³ |
Packaging 4 - Weight (kg) | 176.4kg |
Packaging 4 - Width (m) | 0.8m |
