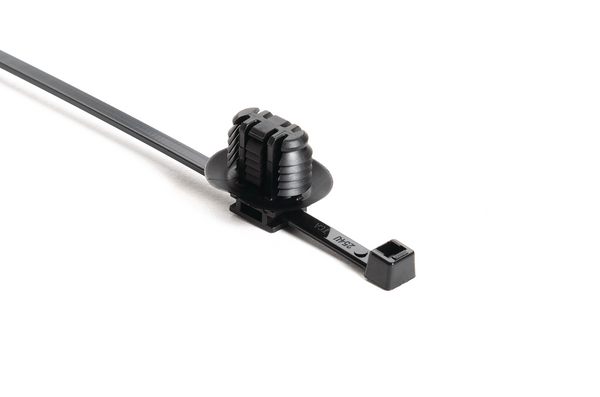

Fixing tie for hole (oval), inside serrated, ∅5.0-50.0mm, black, 500pcs.
Art.-Nr. 156-01641
| T50RFT9X17B2-PA66HIRHSUV-BK
|
Details
- Pre-assembled 2-piece fixing tie with fir tree foot part
- Cable tie head can be moved after bundling
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
- DOP versions for oval holes feature anti-twist protection
Request your individual offer now
Request quote
More products in this product group:
| Application | Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines. |
| Colour | Black (BK) |
| Description | These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt. |
| Fixation Method | Fir tree for round holes |
| Identification Plate Position | none |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | T50RFT9X17B2-PA66HIRHSUV-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| Product Family | for oval holes |
| Product Group | 2-piece fixing ties with fir tree, with disc |
| Tie Closure | plastic pawl |
| Type | T50RFT9X17B2 |
| Bundle Diameter max (metric) | 50.0mm |
| Bundle ∅ | 5.0-50.0mm |
| Bundle ∅ min. | 5.0mm |
| Fixing Hole Shape | Oval |
| Length (L) | 203.2mm |
| Min.Tensile Strength | 225N |
| Panel Thickness max. | 0.6 - 5.5mm |
| Weight/Unit | 0.003489kg |
| Width (W) | 4.6mm |
| for Hole ∅ (FH) | 9.0 x 17.0 mm |
| for Panel Thickness min - max | 0.6 - 5.5 mm |
| for Panel Thickness min - max | 0 - 0.2 " |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026568126 |
| Packaging 1 - Qty | 3000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 10.467001kg |
| Packaging 3 - Height (m) | 0.3730625m |
| Packaging 3 - Length (m) | 0.587375m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.063m³ |
| Packaging 3 - Weight (kg) | 11.287001kg |
| Packaging 3 - Width (m) | 0.2873375m |
| Packaging 4 - Height (m) | 1.263m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 36000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.212m³ |
| Packaging 4 - Weight (kg) | 156.444kg |
| Packaging 4 - Width (m) | 0.8m |
