28/12/2024

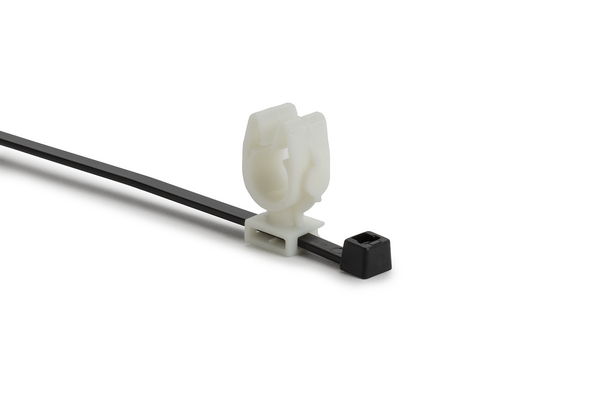

Fixing tie with pipe/tube holder, ∅9.5-11.5mm, black/natural, 2000pcs.
Art.-Nr. 156-03613 | T50RMOC10SAD-PA66HIRHSUV/PA66HIRHS-BK/NA Details

Request your individual offer now

Cable ∅ max 50.0mm
Cable ∅ min 1.5mm
Colour Black (BK), Natural (NA)
Fixation Method Omega Clip
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION T50RMOC10SAD-PA66HIRHSUV/PA66HIRHS-BK/NA
Pack Cont. 2000pcs.
Package Content packed in carton
Product Group 2-piece fixing ties with pipe clip
Type T50RMOC10SAD
Bundle Diameter Nom. (ND) 10.0 mm
Bundle Diameter max (metric) 11.5mm
Bundle ∅ 9.5-11.5mm
Bundle ∅ min. 9.5mm
Depth (D) 10.0mm
Height (H) 31.9mm
Length (L) 202.0mm
Length (L2) 13.2mm
Min.Tensile Strength 225N
CE Certification No
CSA Certified No
Operating Temperature -40 °C to +105 °C
Operating Temperature Foot Part (Metric) -40 °C to +110 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
Country of Origin MX
GTIN-13 / EAN 4031026756820
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121702
