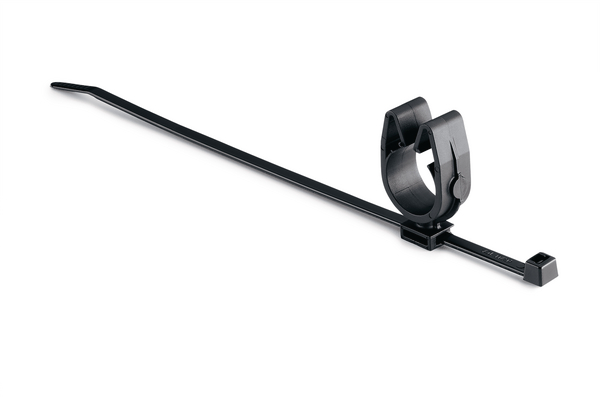

Fixing tie with pipe/tube holder, inside serrated, ∅17.0-21.8mm, black, 2000pcs.
Art.-Nr. 156-01819 | T50RMOC19SAD-SET-PA66HIRHSUV-BK |  Details

The bi-directional saddle design allows the bundles to be coupled parallel or perpendicular to one another.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable ∅ max 50.0mm
    Cable ∅ min 1.5mm
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50RMOC19SAD-SET-PA66HIRHSUV-BK
    Pack Cont. 2000pcs.
    Package Content packed in carton
    Product Group 2-Piece Fixing Ties with Pipe Clip
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RMOC19SAD-SET
    Variant Inside Serrated
    Bundle Diameter Nom. (ND) 19.0 mm
    Bundle Diameter max (metric) 21.8mm
    Bundle ∅ 17.0-21.8mm
    Bundle ∅ min. 17.0mm
    Depth (D) 12.0mm
    Height (H) 38.9mm
    Length (L) 27.3mm
    Length (L2) 19.7mm
    Min.Tensile Strength 225N
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026592787
    Packaging 1 - Weight (kg) 203.46kg
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.60801m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0506m³
    Packaging 3 - Weight (kg) 7.6kg
    Packaging 3 - Width (m) 0.39688m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
