02/11/2024

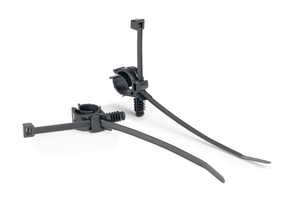

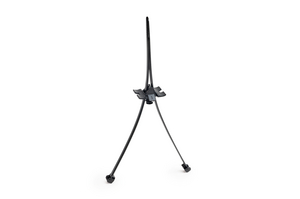

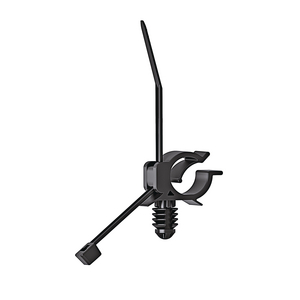

Fixing tie for hole (round)/for cable bundles, outside serrated, ∅2.5-45.0mm, black, 500pcs.
Art.-Nr. 156-02770 | T50ROSDFT6LG-PA66HS/PA66HIRHS-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Fir Tree
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50ROSDFT6LG-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family for parallel routing
    Product Group 2-piece fixing tie with fir tree
    Type T50ROSDFT6LG
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 2.5-45.0mm
    Bundle ∅ min. 2.5mm
    Height (H) 1.3mm
    Height (H2) 17.0mm
    Length (L) 200.0mm
    Length (L2) 23.8mm
    Mechanical Strength 180N
    Panel Thickness max. 0.6 - 3.0mm
    Thickness (T) 1.3mm
    Weight/Unit 0.003607kg
    Width (W) 4.6mm
    Width (W2) 20.0mm
    for Hole ∅ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 0.6 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026628653
    Packaging 1 - Height (m) 0.11m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.02818m³
    Packaging 1 - Weight (kg) 1.847097kg
    Packaging 1 - Width (m) 0.545m
    Packaging 3 - Height (m) 0.538m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 2500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.1213m³
    Packaging 3 - Weight (kg) 10.335485kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.22m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 20000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.171m³
    Packaging 4 - Weight (kg) 103.7kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
