Fixing tie for edge, outside serrated, ∅3.0-42.0mm, black, 1000pcs.
Art.-Nr. 156-04016
| T50ROSEC1-3RO90-PA66HS/PA66HIRHS-BK
|
Details
- Pre-assembled 2-piece fixing tie with EdgeClip
- Easy to assemble by hand
- Cable tie head can be moved after bundling
- For edges of 1 – 2.5 mm or 1 – 3 mm
- Can be rotated to the desired position
Request your individual offer now
Request quote
More products in this product group:
| Application | These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or or where adhesives will fail due to temperature problems. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel buidling and electrical industry. |
| Cable Tie | Polyamide 6, heat stabilised (PA6HS) |
| Colour | Black (BK) |

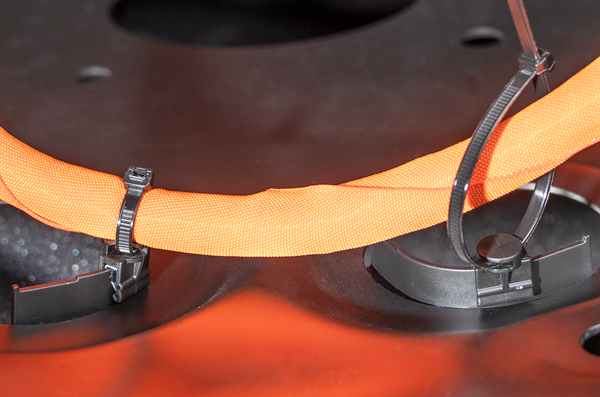

| Description | These EdgeClips are also mounted simply by pushing them onto an edge. A twistable EdgeClip is the ideal solution whenever flexible routing of cable bundles is required. The cable route can even be modified post-installation. The clips are available in 90° and 360° models for use with different types of cable tie. On the CBT30MR the bundle runs at the side of the clip, on the CBTO50R it runs over the centre of the clip. |
| Fixation Method | Edge Clips with tie |
| Foot Part | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Identification Plate Position | none |
| Key product features | for narrow bundling |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | T50ROSEC1-3RO90-PA66HS/PA66HIRHS-BK |
| Pack Cont. | 1000pcs. |
| Package Content packed in | bag |
| Product Family | EdgeClip-Series, twistable |
| Product Group | 2-piece fixing ties for edges |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T50ROSEC1-3RO90 |
| Variant | 1.0 - 3.0 mm Edge |
| Bundle Diameter max (metric) | 42.0mm |
| Bundle ∅ | 3.0-42.0mm |
| Bundle ∅ min. | 3.0mm |
| Cable Tie Head Height (metric) | 5.9mm |
| Cable Tie Head Length (metric) | 6.75mm |
| Cable Tie Head Width (metric) | 7.9mm |
| Height (H) | 1.3mm |
| Height (H2) | 15.6mm |
| Length (L) | 200.0mm |
| Length (L2) | 15.0mm |
| Min.Tensile Strength | 225N |
| Panel Thickness max. | 1.0 - 3.0mm |
| Rotation (°) | 90° |
| Thickness (T) | 1.3mm |
| Weight/Unit | 0.003025kg |
| Width (W) | 4.6mm |
| Width (W2) | 12.0mm |
| for Panel Thickness min - max | 1 - 3 mm |
Download
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026663876 |
| Packaging 1 - Height (m) | 0.18m |
| Packaging 1 - Length (m) | 0.55m |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.04703m³ |
| Packaging 1 - Weight (kg) | 3.068597kg |
| Packaging 1 - Width (m) | 0.475m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 13.094388kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 178.152kg |
| Packaging 4 - Width (m) | 0.8m |
