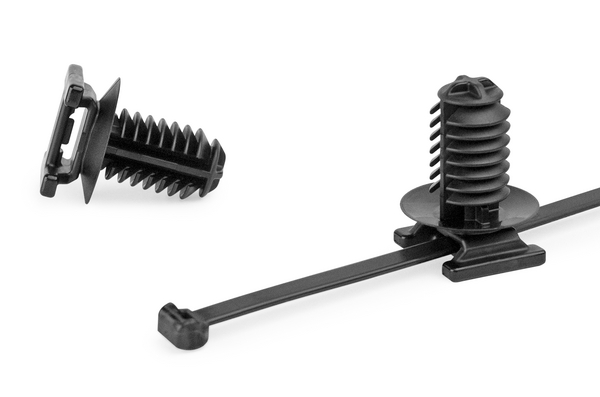

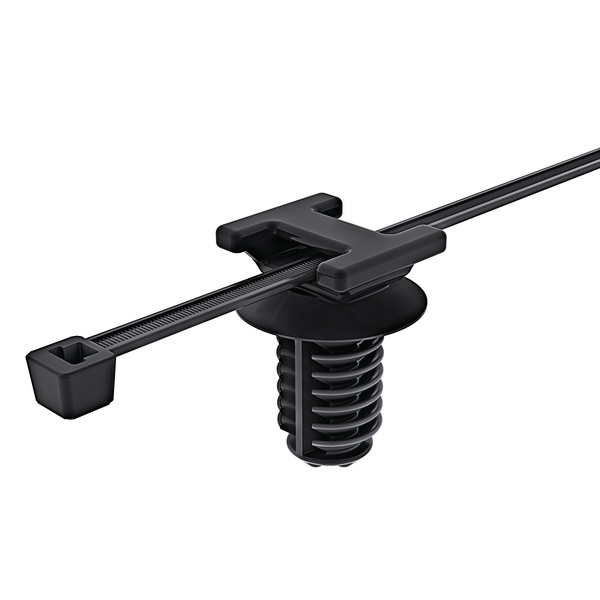

Fixing tie for hole (round), inside serrated, ∅50.0mm, black, 500pcs.
Art.-Nr. 156-01471 | T50ROSFT13SET-PA66HS/PA66HIRHS-BK |  Details

T50ROSFT13SET

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Fir Tree
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50ROSFT13SET-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50ROSFT13SET
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 50.0mm
    Length (L) 200.0mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.7-10.0mm
    Thickness (T) 1.3mm
    Weight/Unit 0.005kg
    Width (W) 4.6mm
    for Hole ∅ (FH) 13.0 mm
    for Panel Thickness min - max 0.7 - 10 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026517353
    Packaging 3 - Height (m) 0.36m
    Packaging 3 - Length (m) 0.57m
    Packaging 3 - Qty 3000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0759m³
    Packaging 3 - Weight (kg) 15.5kg
    Packaging 3 - Width (m) 0.37m
    Packaging 4 - Height (m) 1.22m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.171m³
    Packaging 4 - Weight (kg) 207.0kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
    Show all
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
