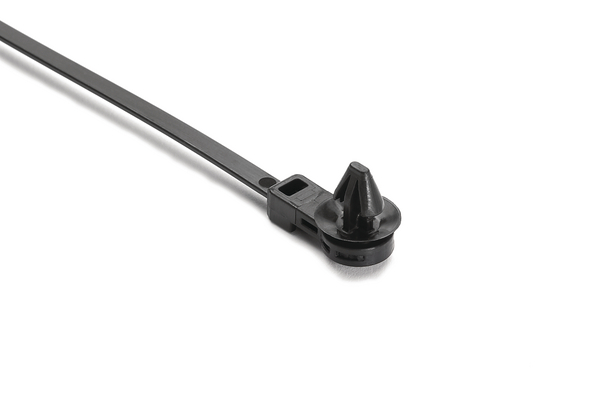

Fixing tie for hole (round), ∅2.0-50.0mm, black, 3000pcs.
Art.-Nr. 157-00246
| T50ROSFT6.35SO12.5B-PA66HIRHSUV-BK
|
Details
- Bundling and fixing solution
- Ideal combination of materials and design
- Different positions of the fixing anchor are available to fit installation space
![](https://www.hellermanntyton.com/shared/speclogos/99595_All_Languages.jpg)
Request your individual offer now
Request quote
More products in this product group:
Colour | Black (BK) |
Fixation Method | Fir tree for round holes |
Identification Plate Position | none |
Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
PART DESCRIPTION | T50ROSFT6.35SO12.5B-PA66HIRHSUV-BK |
Pack Cont. | 3000pcs. |
Package Content packed in | bag |
Product Family | With offset 12.5 and 25.0 mm |
Product Group | 1-piece fixing ties with fir tree, with disc, with stand-off, for round holes |
Releasable Closure (Yes/No) | No |
Short Description | 1-Piece Fixing Ties with Fir Tree and Disc, with Stand-off, for Round Holes |
Type | T50ROSFT6.35SO12.5B |
Bundle Diameter max (metric) | 50.0mm |
Bundle ∅ | 2.0-50.0mm |
Bundle ∅ min. | 2.0mm |
Disc ∅ | 15.0mm |
Length (L2) | 12.5mm |
Min.Tensile Strength | 225N |
Offset Length | 12.5mm |
Panel Thickness max. | 1.8 - 2.8mm |
Weight/Unit | 0.0024kg |
for Hole ∅ (FH) | 6.1 - 6.9 mm, 6.1 - 6.6 mm (hexagonal) |
for Panel Thickness min - max | 1.8 - 2.8 mm |
for Panel Thickness min - max | 0.1 - 0.1 " |
CE Certification | No |
CSA Certified | No |
ELV compliant (Article 4 - 2) | YES |
Hazardous Goods | No |
Operating Temperature | -40 °C to +105 °C |
ROHS compliant | Yes |
Specifications |
![]() |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | No |
UL Recognized (US and Canada) | No |
UV-Stabilised | Yes |
|
|
Country of Origin | US |
Customs Number | 39269097 |
GTIN-13 / EAN | 4031026522098 |
Packaging 1 - Height (m) | 0.365m |
Packaging 1 - Length (m) | 0.575m |
Packaging 1 - Qty | 3000 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.05877m³ |
Packaging 1 - Weight (kg) | 7.200001kg |
Packaging 1 - Width (m) | 0.28m |
Packaging 3 - Height (m) | 0.37465m |
Packaging 3 - Length (m) | 0.59055m |
Packaging 3 - Qty | 3000 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.0646m³ |
Packaging 3 - Weight (kg) | 8.020001kg |
Packaging 3 - Width (m) | 0.2921m |
Packaging 4 - Height (m) | 1.269m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 36000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.218m³ |
Packaging 4 - Weight (kg) | 117.24kg |
Packaging 4 - Width (m) | 0.8m |
