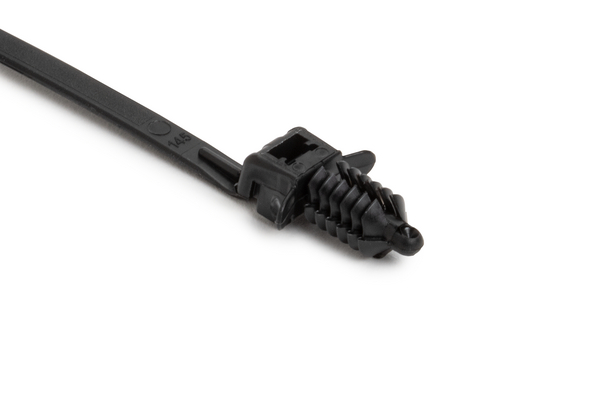

Fixing tie, outside serrated, ∅2.0-50.0mm, black, 3000pcs.
Art.-Nr. 133-02892 | T50ROSFT6.5-PA66HIRHS-BK |  Details

    • Bundling and fixing solution
    • Ideal combination of materials and design
    • Different positions of the fixing anchor are available to fit installation space
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50ROSFT6.5-PA66HIRHS-BK
    Pack Cont. 3000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Type T50ROSFT6.5
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Height (H) 15.1mm
    Length (L) 151.7mm
    Min.Tensile Strength 222N
    Panel Thickness max. 0.8 - 6.3mm
    Thickness (T) 1.2mm
    Weight/Unit 0.001267kg
    Width (W) 4.8mm
    for Hole ∅ (FH) 6.3 - 7.0 mm
    for Panel Thickness min - max 0.8 - 6.3 mm
    for Panel Thickness min - max 0 - 0.3 "
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026582627
    Packaging 1 - Height (m) 0.34m
    Packaging 1 - Length (m) 0.562m
    Packaging 1 - Qty 3000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.06535m³
    Packaging 1 - Weight (kg) 3.801001kg
    Packaging 1 - Width (m) 0.342m
    Packaging 3 - Height (m) 0.35242499999999995m
    Packaging 3 - Length (m) 0.5715m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0703m³
    Packaging 3 - Weight (kg) 4.531001kg
    Packaging 3 - Width (m) 0.34925m
    Packaging 4 - Height (m) 1.2m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.152m³
    Packaging 4 - Weight (kg) 75.372kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
