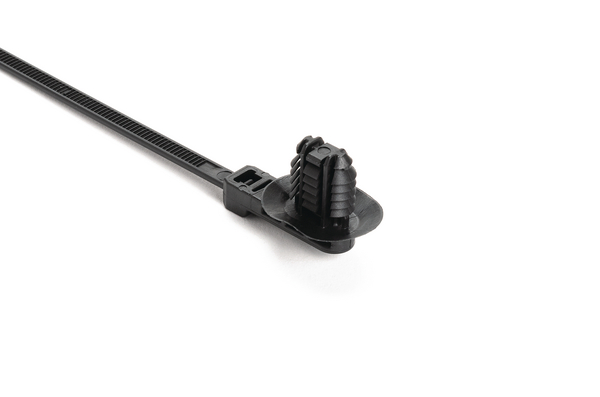

Fixing tie for hole (oval), ∅2.0-50.0mm, black, 3000pcs.
Art.-Nr. 157-00437 | T50ROSFTOVALIL15A-PA66HIRHSUV-BK |  Details

This 1-piece fixing tie with fir tree design for oval holes features anti-twist protection.

    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    • Versions for oval holes feature anti-twist protection
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50ROSFTOVALIL15A-PA66HIRHSUV-BK
    Pack Cont. 3000pcs.
    Package Content packed in bag
    Product Family for oval holes
    Product Group 1-piece fixing ties with fir tree, with disc
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50ROSFTOVALIL15A
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Fixing Hole Shape Oval
    Length (L) 222.3mm
    Min.Tensile Strength 225N
    Offset Length 15.0mm
    Panel Thickness max. 0.6 - 6.75mm
    Weight/Unit 0.00287kg
    Width (W) 17.63mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    for Panel Thickness min - max 0 - 0.3 "
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026702339
    Packaging 1 - Height (m) 0.21m
    Packaging 1 - Length (m) 0.6m
    Packaging 1 - Qty 3000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.04914m³
    Packaging 1 - Weight (kg) 8.610001kg
    Packaging 1 - Width (m) 0.39m
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Weight (kg) 9.380001kg
    Packaging 3 - Width (m) 0.3984625m
    Packaging 4 - Height (m) 1.239m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 45000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.189m³
    Packaging 4 - Weight (kg) 161.7kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
