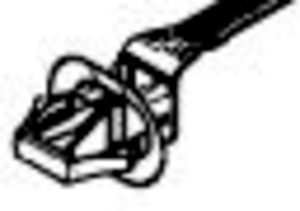

Fixing tie for hole (oval), outside serrated, ∅2.0-50.0mm, black, 1000pcs.
Art.-Nr. 157-00268
| T50ROSFTSOVAL-PA66HIRHSUV-BK
|
Details
- Cable tie head always situated in defined position
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
- Versions for oval holes feature anti-twist protection
Request your individual offer now
Request quote
More products in this product group:
| Application | Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines. |
| Colour | Black (BK) |
| Fixation Method | Fir tree for round holes |
| Identification Plate Position | none |
| Internet Customer Notice | Scroll down for alternative automation-ready products. |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | T50ROSFTSOVAL-PA66HIRHSUV-BK |
| Pack Cont. | 1000pcs. |
| Package Content packed in | bag |
| Product Family | for oval holes |
| Product Group | 1-piece fixing ties with fir tree, with disc |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T50ROSFTSOVAL |
| Variant | Outside Serrated |
|
|
| Bundle Diameter max (metric) | 50.0mm |
| Bundle ∅ | 2.0-50.0mm |
| Bundle ∅ min. | 2.0mm |
| Disc ∅ | 17.6 x 23.6mm |
| Fixing Hole Shape | Oval |
| Height (H) | 8.05mm |
| Length (L) | 215.9mm |
| Min.Tensile Strength | 225N |
| Panel Thickness max. | 0.6 - 3.0mm |
| Weight/Unit | 0.001977kg |
| Width (W) | 4.70mm |
| for Hole ∅ (FH) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.6 - 3 mm |
| for Panel Thickness min - max | 0 - 0.1 " |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026557076 |
| Packaging 1 - Height (m) | 0.17m |
| Packaging 1 - Length (m) | 0.5m |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0323m³ |
| Packaging 1 - Weight (kg) | 1.977001kg |
| Packaging 1 - Width (m) | 0.38m |
| Packaging 3 - Height (m) | 0.3730625m |
| Packaging 3 - Length (m) | 0.587375m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.063m³ |
| Packaging 3 - Weight (kg) | 6.751003kg |
| Packaging 3 - Width (m) | 0.2873375m |
| Packaging 4 - Height (m) | 1.263m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 36000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.212m³ |
| Packaging 4 - Weight (kg) | 102.012kg |
| Packaging 4 - Width (m) | 0.8m |
