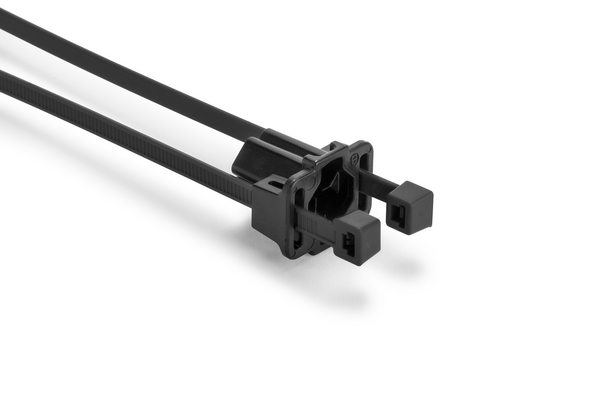

Fixing tie for stud, ∅4.0-50.0mm, black, 500pcs.
Art.-Nr. 156-04238 | T50ROSX2SBS5-6U-PA66HS/PA66HIRHSUV-BK |  Details

Three-piece design can secure routings parallel or perpendicular to a stud.

    • Pre-assembled with cable tie and weld stud mounting base
    • Quick and easy installation
    • Head rotates into perfect position for installation
    • 'Soft-push' design for tool-free installation
    • Mushroom-shaped SBH handles insulation or a sound-deadening blanket
    • SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
    • SB5 allow lateral tolerance for fixing point
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Stud Mount
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50ROSX2SBS5-6U-PA66HS/PA66HIRHSUV-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Group 2-Piece Fixing Ties for Weld Studs
    Tie Closure plastic pawl
    Type T50ROSX2SBS5-6U
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 4.0-50.0mm
    Bundle ∅ min. 4.0mm
    Height (H) 1.2mm
    Length (L) 202.0mm
    Min.Tensile Strength 200N
    Stud ∅ 0.20"
    Stud ∅ M5, M6
    Width (W) 4.6mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026695839
    Packaging 1 - Qty 500
    Packaging 3 - Qty 1500
    Packaging 3 - Type box
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
