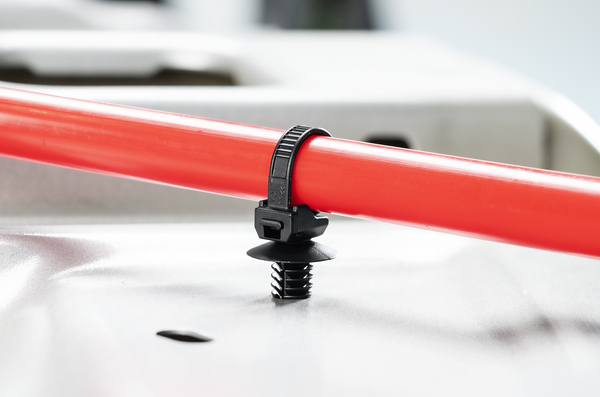

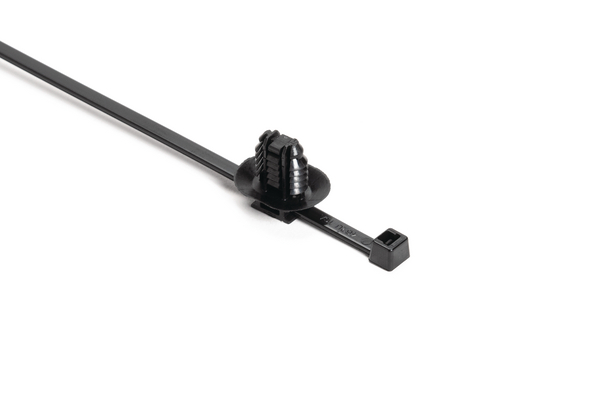

Fixing tie, inside serrated, ⌀5.0-50.0mm, black, 3000pcs.
Art.-Nr. 156-03218
| T50RSADFTOVALSET-PA66HIRHS(REC)-BK
|
Copied
| Cable Tie | Polyamide 6.6 recycled, high impact modified, heat stabilised (PA66HIRHS(REC100)) |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Identification Plate Position | none |
| Material | Polyamide 6.6 recycled, high impact modified, heat stabilised (PA66HIRHS(REC)) |
| PART DESCRIPTION | T50RSADFTOVALSET-PA66HIRHS(REC)-BK |
| Pack Cont. | 3000pcs. |
| Package Content packed in | carton |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T50RSADFTOVALSET |
| Variant | Inside Serrated |
| Bundle ⌀ | 5.0-50.0mm |
| Bundle ⌀ max. | 50.0mm |
| Bundle ⌀ min. | 5.0mm |
| Fixing Hole Shape | Oval |
| Height (H) | 20.0mm |
| Length (L) | 202.0mm |
| Min.Tensile Strength | 225N |
| Panel Thickness max. | 0.6 - 6.0mm |
| Width (W) | 17.63mm |
| for Hole ⌀ (FH) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.6 - 6 mm |
| for Panel Thickness min - max | 0 - 0.2 " |
Download
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Operating Temperature | -40 °C to +110 °C |
| ROHS compliant | Yes |
| Specifications |
|
|
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. ReSource highlights HellermannTyton products that are made from reccled waste or from virgin materials with relatively lower carbon emissions. |
| Country of Origin | US |
| GTIN-13 / EAN | 4031026729541 |
| Packaging 3 - Height (m) | 0.20954999999999998m |
| Packaging 3 - Length (m) | 0.6048375m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0501m³ |
| Packaging 3 - Weight (kg) | 3.77kg |
| Packaging 3 - Width (m) | 0.39528749999999997m |
| Packaging 4 - Qty | 90000 |
