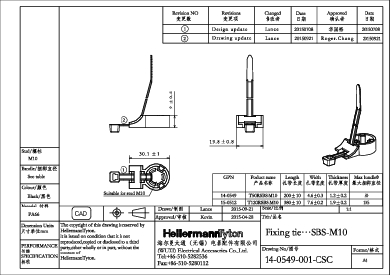

Fixing tie for stud, inside serrated, ∅50.0mm, black, 500pcs.
Art.-Nr. 156-01532 | T50RSBS-M10-PA66HS/PA66HIRHS-BK |  Details

    • Pre-assembled with cable tie and weld stud mounting base
    • Quick and easy installation
    • Head rotates into perfect position for installation
    • 'Soft-push' design for tool-free installation
    • Mushroom-shaped SBH handles insulation or a sound-deadening blanket
    • SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
    • SB5 allow lateral tolerance for fixing point
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50RSBS-M10-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family for heavy duty applications
    Product Group 2-Piece Fixing Ties for Weld Studs
    Tie Closure plastic pawl
    Type T50RSBS-M10
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 50.0mm
    Length (L) 200.0mm
    Min.Tensile Strength 225N
    Stud ∅ M10
    Weight/Unit 0.003155kg
    Width (W) 4.6mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026523415
    Packaging 1 - Height (m) 0.11m
    Packaging 1 - Length (m) 0.37m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01221m³
    Packaging 1 - Weight (kg) 1.577501kg
    Packaging 1 - Width (m) 0.3m
    Packaging 3 - Height (m) 0.36m
    Packaging 3 - Length (m) 0.59m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0828m³
    Packaging 3 - Weight (kg) 10.120006kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.224m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.175m³
    Packaging 4 - Weight (kg) 142.44kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
