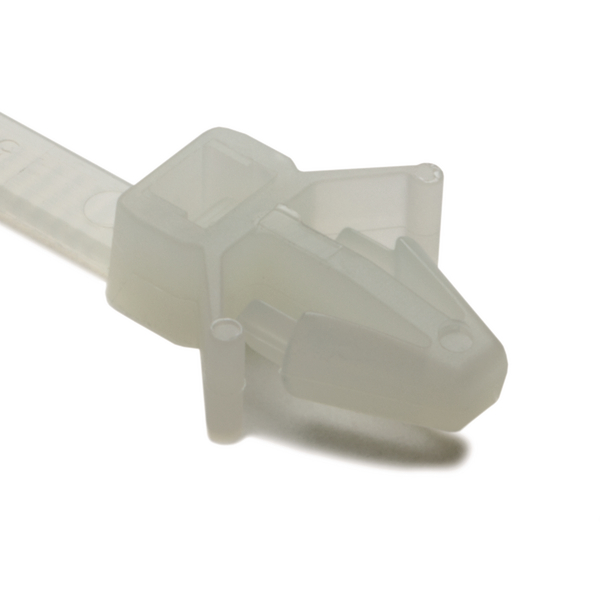

Fixing tie for hole (round), inside serrated, ∅1.5-45.0mm, natural, 500pcs.
Art.-Nr. 126-00117 | T50RSFM-PA66-NA |  Details

Fixing tie with Arrowhead for round hole.

    • Easy to assemble without the need for a tool
    • Cable tie head always situated in defined position
    • Arrowhead simply locks into place
    • Supporting legs provide a secure and firm fixing in areas where space is limited
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.
    Colour Natural (NA)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION T50RSFM-PA66-NA
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family for round holes
    Product Group 1-Piece Fixing Ties with Arrowhead, with Wings
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RSFM
    Variant Inside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 1.5-45.0mm
    Bundle ∅ min. 1.5mm
    Height (H) 5.60mm
    Length (L) 203.2mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.7 - 3.0mm
    Thickness (T) 1.3mm
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.0 - 6.6 mm
    for Panel Thickness min - max 0.7 - 3 mm
    for Panel Thickness min - max 0 - 0.1 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026324173
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Width (m) 0.396875m
    Packaging 4 - Qty 12000
    Packaging 4 - Type pallet
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
