Fixing tie for hole (round), inside serrated, ∅1.6-50.8mm, grey, 1000pcs.
Art.-Nr. 126-03504 | T50RTM25E-PA66HIRHS-GY |  Details

    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
    Colour Grey (GY)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50RTM25E-PA66HIRHS-GY
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Product Family Fir tree parts FT6
    Product Group 1-piece fixing ties with fir tree, with disc, for round holes
    Releasable Closure (Yes/No) Yes
    Tie Closure plastic pawl
    Type T50RTM25E
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.8mm
    Bundle ∅ 1.6-50.8mm
    Bundle ∅ min. 1.6mm
    Disc ∅ 12.6mm
    Height (H) 1.3mm
    Length (L) 203.2mm
    Length of Fir Tree 15.5mm
    Min.Tensile Strength 222N
    Panel Thickness max. 2.3 - 13.9mm
    Thickness (T) 1.3mm
    Weight/Unit 0.00169kg
    Width (W) 4.7mm
    for Hole ∅ (FH) 6.25 - 7.0 mm
    for Panel Thickness min - max 2.3 - 13.9 mm
    for Panel Thickness min - max 0.1 - 0.5 "
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +100 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026424361
    Packaging 1 - Height (m) 0.1m
    Packaging 1 - Length (m) 0.37m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01036m³
    Packaging 1 - Weight (kg) 1.69kg
    Packaging 1 - Width (m) 0.28m

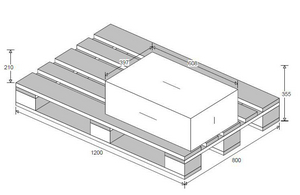

    Packaging 3 - Height (m) 0.20954999999999998m
    Packaging 3 - Length (m) 0.6080124999999999m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0506m³
    Packaging 3 - Weight (kg) 9.33kg
    Packaging 3 - Width (m) 0.396875m

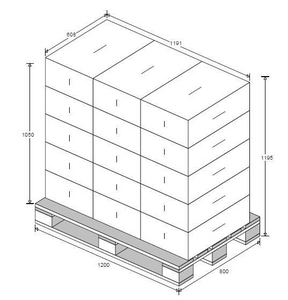

    Packaging 4 - Height (m) 1.244m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 75000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.194m³
    Packaging 4 - Weight (kg) 160.95kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
