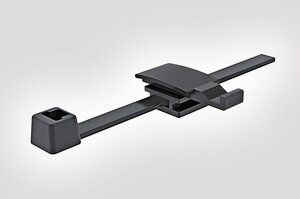

Connector clip family
Art.-Nr. 156-00521 | T50RYCCB-PA66HS/PA66HIRHS |  Details

    • Easy to assemble without a need for a tool
    • Preassembled cable tie with connector clip
    • Connector can be removed without damage
    • Rattle-free mounting
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These two piece fixing ties with connector clips have been designed for electronic cables and cable sets used in the automotve industry. The connector are pushed onto the connector clip and hold firmly in place.
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50RYCCB-PA66HS/PA66HIRHS
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family Connector clip family
    Product Group 2-piece fixing tie with connector clip
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RYCCB
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 50.0mm
    Height (H) 7.5mm
    Length (L) 200.0mm
    Min.Tensile Strength 225N
    Thickness (T) 1.2mm
    Weight/Unit 0.00217kg
    Width (W) 4.6mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2, UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin BR
    Customs Number 39269097
    GTIN-13 / EAN 7890176064929
    Packaging 1 - Height (m) 0.04m
    Packaging 1 - Length (m) 0.2m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00296m³
    Packaging 1 - Weight (kg) 0.217001kg
    Packaging 1 - Width (m) 0.37m
    Packaging 3 - Height (m) 0.26m
    Packaging 3 - Length (m) 0.48m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0474m³
    Packaging 3 - Weight (kg) 9.14004kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.184m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 64000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.137m³
    Packaging 4 - Weight (kg) 167.24kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
