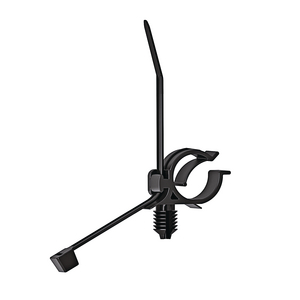

Fixing tie for hole (round)/with pipe/tube holder, ∅1.0-30.0mm, black, 500pcs.
Art.-Nr. 156-00678 | T50SCTCFT6-PA66HS/PA66HIRHS-BK |  Details

T50SCTCFT6.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Convoluted Tube Clips
    Identification Plate Position none
    Key product features rotatable, for multiple routing, removable
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SCTCFT6-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family with pipe clip and fir tree
    Product Group 2-piece fixing ties
    Type T50SCTCFT6
    Attach to Ø 11.0 - 15.0 mm
    Bundle Diameter max (metric) 30.0mm
    Bundle ∅ 1.0-30.0mm
    Bundle ∅ min. 1.0mm
    Length (L) 150.0mm
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 0.7 - 4.5 mm
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026413532
    Packaging 3 - Weight (kg) 7.3kg
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
