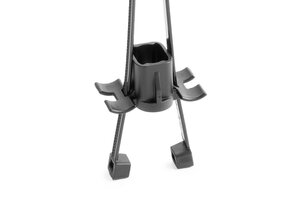

Fixing tie for stud, inside serrated, ∅2.0-35.0mm, black, 500pcs.
Art.-Nr. 156-03295 | T50SDSB5-6H-PA66HS/PA66HIRHS-BK |  Details

    • Pre-assembled 2-piece fixing tie with stud retainer

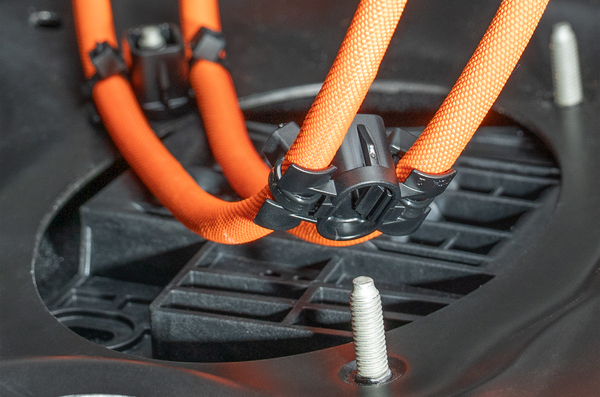

    • For parallel routing of cables, hoses or harnesses
    • Cable tie head can be moved after bundling
    • Easy to install without the need for a tool
    • For 5 or 6 mm studs or 5 or 6 mm ISO threaded studs
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application 156-03295
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Description Fixing tie for stud, inside serrated, ∅2.0-35.0mm, black
    Fixation Method Stud Mount
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Key product features for multiple routing
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SDSB5-6H-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family Fixing tie for stud
    Product Group Fixing tie for stud
    Short Description Fixing tie for stud, inside serrated, ∅2.0-35.0mm, black
    Tie Closure plastic pawl
    Type T50SDSB5-6H
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 2.0-35.0mm
    Bundle ∅ min. 2.0mm
    Height (H) 1.2mm
    Height (H2) 17.0mm
    Length (L) 160.0mm
    Length (L2) 34.2mm
    Max Stud Length 16.0mm
    Min.Tensile Strength 225N
    Stud ∅ T5, T6, M5, M6
    Thickness (T) 1.2mm
    Weight/Unit 0.004246kg
    Width (W) 4.6mm
    Width (W2) 20.6mm
    ELV compliant (Article 4 - 2) YES
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026735245
    Packaging 1 - Height (m) 0.14m
    Packaging 1 - Length (m) 0.55m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.03619m³
    Packaging 1 - Weight (kg) 2.166597kg
    Packaging 1 - Width (m) 0.47m
    Packaging 3 - Height (m) 0.538m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 2500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.1213m³
    Packaging 3 - Weight (kg) 11.932985kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.22m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 20000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.171m³
    Packaging 4 - Weight (kg) 116.48kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
