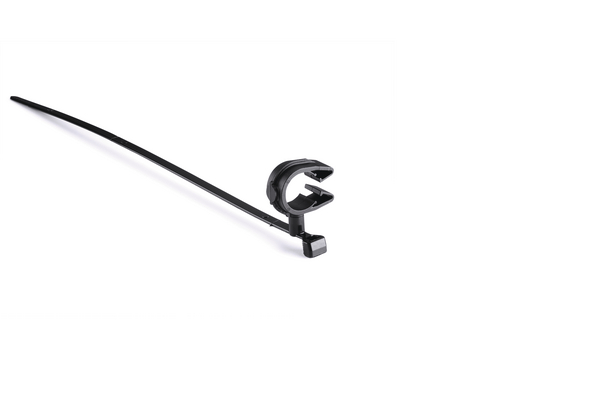

Fixing tie with pipe/tube holder, ⌀13.0-15.8mm, black, 1000pcs.
Art.-Nr. 156-01778 | T50SMVCMOC14M-PA66HIRHSUV-BK |

Copied
Independent rotation allows for adjustable routing orientation.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable ⌀ max 50.0mm
    Cable ⌀ min 2.0mm
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50SMVCMOC14M-PA66HIRHSUV-BK
    Pack Cont. 1000pcs.
    Package Content packed in pack
    Product Group 2-piece fixing ties with pipe clip
    Type T50SMVCMOC14M
    Bundle ⌀ 13.0-15.8mm
    Bundle ⌀ max. 15.8mm
    Bundle ⌀ min. 13.0mm
    Bundle Diameter Nom. (ND) 14.0 mm
    Depth (D) 10.0mm
    Height (H) 35.8mm
    Length (L) 23.8mm
    Length (L2) 18.4mm
    Min.Tensile Strength 225N
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026586885
    Packaging 1 - Type carton
    Packaging 1 - Weight (kg) 201.64kg
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.60801m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0506m³
    Packaging 3 - Weight (kg) 7.08kg
    Packaging 3 - Width (m) 0.39688m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
