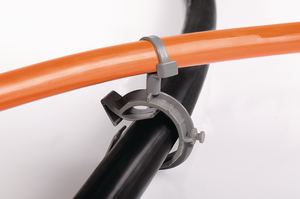

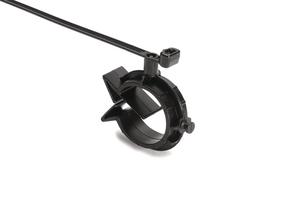

Fixing tie with pipe/tube holder, ∅2.0-50.0mm, black, 500pcs.
Art.-Nr. 156-01342 | T50SMVCOC19-24.5-PA66HS/PA66HIRHS-BK |  Details

    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features rotatable, for multiple routing, removable
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SMVCOC19-24.5-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family T50SMVCOC19-24,5 for Pipediameter 19.0 - 24.5 mm
    Product Group 2-piece fixing ties with pipe clip
    Type T50SMVCOC19-24.5
    Attach to Diameter 0.75 - 0.96 "
    Attach to Ø 19.0 - 24.5
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Length (L) 210.0mm
    Min.Tensile Strength 222N
    Thickness (T) 1.35mm
    Width (W) 4.7mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin FR
    GTIN-13 / EAN 4031026505329
    Packaging 3 - Type box
    Packaging 3 - Weight (kg) 11.19kg
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
