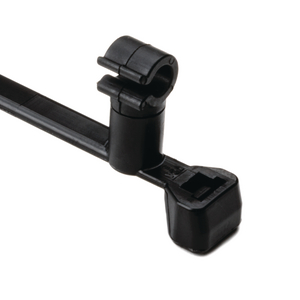

Fixing tie with pipe/tube holder, outside serrated, ∅2-35mm, black, 500pcs.
Art.-Nr. 156-03033 | T50SOSASVC3.5-PA66HIRHS-BK |  Details

T50SOS-AS cable tie, with pipe clip, rotatable.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SOSASVC3.5-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Group 2-piece fixing ties with pipe clip
    Type T50SOSASVC3.5
    Variant Outside Serrated with AntiSlip Engraving
    Attach to Ø 3.45 - 3.55
    Bundle Diameter max (metric) 35mm
    Bundle ∅ 2-35mm
    Bundle ∅ min. 2mm
    Length (L) 155mm
    Min.Tensile Strength 200N
    Weight/Unit 0.0007kg
    Width (W) 4.6mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026645759
    Packaging 1 - Height (m) 0.085m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01511m³
    Packaging 1 - Weight (kg) 0.379135kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 8000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 6.88616kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 96000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 103.608kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
