15/11/2024

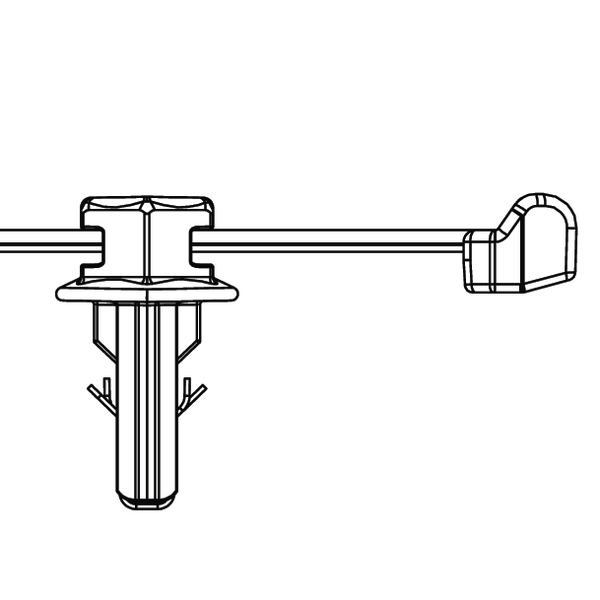

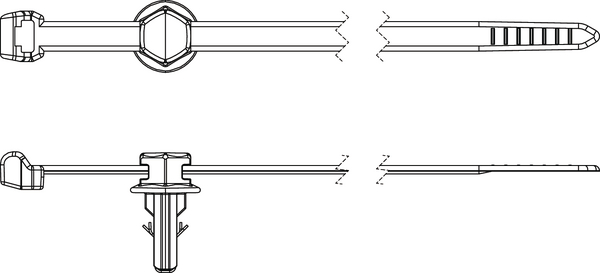

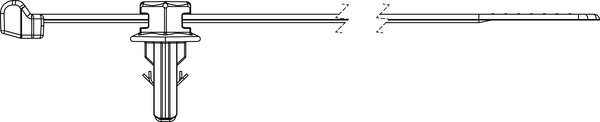

Fixing tie to close hole, outside serrated, ∅2.5-35.0mm, black, 500pcs.
Art.-Nr. 156-01807 | T50SOSBHMB-PA66HS-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Blind Plug
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SOSBHMB-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Type T50SOSBHMB
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 2.5-35.0mm
    Bundle ∅ min. 2.5mm
    Diameter (D) 6.35mm
    Height (H) 18.7mm
    Height (H2) 12.4mm
    Hole Depth 12.7mm
    Length (L) 150.0mm
    Min.Tensile Strength 225N
    Weight/Unit 0.00264kg
    Width (W) 7.8mm
    for Hole ∅ (FH) 6.25 - 6.45 mm
    ∅ D 0.25"
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026591865
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 1.32kg
    Packaging 3 - Height (m) 0.210m
    Packaging 3 - Length (m) 0.518m
    Packaging 3 - Qty 4000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0346m³
    Packaging 3 - Weight (kg) 10.56kg
    Packaging 3 - Width (m) 0.318m
    Packaging 4 - Qty 80000
    Packaging 4 - Type pallet
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
