without clamp
Art.-Nr. 126-00308 | T50SOSEC13E-WOC-PA66HS-BK |  Details

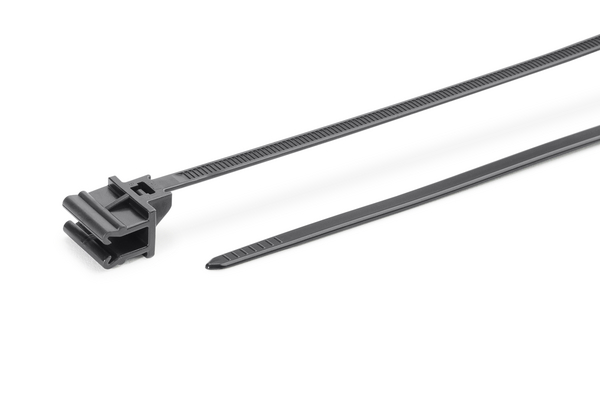

1-Piece Fixing Tie with EdgeClip for parallel cable routing to the edge.

    • without clamp
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
    Colour Black (BK)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SOSEC13E-WOC-PA66HS-BK
    Pack Cont. 1000pcs.
    Package Content packed in box
    Product Group without clamp
    Type T50SOSEC13E-WOC
    Variant Outside Serrated
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.0-35.0mm
    Bundle ∅ min. 1.0mm
    Height (H) 1.35mm
    Length (L) 160.0mm
    Length (L2) 15.0mm
    Min.Tensile Strength 180N
    Panel Thickness max. 1.0 – 3.0mm
    Weight/Unit 0.00249kg
    Width (W) 4.6mm
    Width (W2) 11.0mm
    for Panel Thickness min - max 1 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026584652
    Packaging 1 - Height (m) 0.1m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.02562m³
    Packaging 1 - Weight (kg) 2.533597kg
    Packaging 1 - Width (m) 0.545m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 13.487985kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 182.88kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
