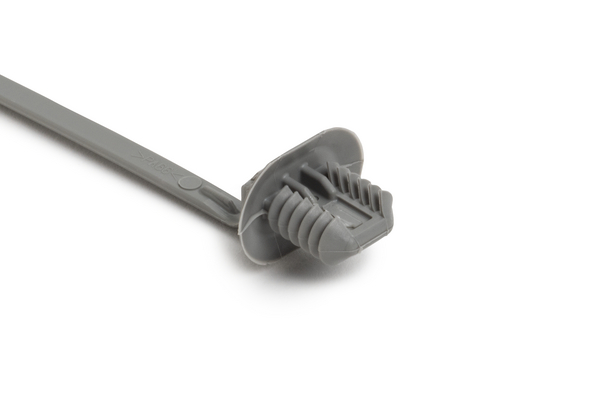

Fixing tie for hole (oval), outside serrated, ∅2.0-50.0mm, grey, 2000Carton
Art.-Nr. 133-02810 | T50SOSFT7X12-PA66HIRHS-GY |  Details

    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    • Versions for oval holes feature anti-twist protection
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Colour Grey (GY)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SOSFT7X12-PA66HIRHS-GY
    Pack Cont. 2000Carton
    Package Content packed in carton
    Product Family for oval holes
    Product Group 1-piece fixing ties with fir tree, with disc
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SOSFT7X12
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Disc ∅ 16.0mm
    Fixing Hole Shape Oval
    Height (H) 14.8mm
    Length (L) 157.0mm
    Min.Tensile Strength 222N
    Panel Thickness max. 0.8 - 14.5mm
    Thickness (T) 1.3mm
    Weight/Unit 0.01kg
    Width (W) 4.8mm
    for Hole ∅ (FH) 7.0 x 12.0 mm
    for Panel Thickness min - max 0.8 - 14.5 mm
    for Panel Thickness min - max 0 - 0.6 "
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026580852
    Packaging 3 - Height (m) 0.35242499999999995m
    Packaging 3 - Length (m) 0.5715m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0703m³
    Packaging 3 - Weight (kg) 20.73kg
    Packaging 3 - Width (m) 0.34925m
    Packaging 4 - Height (m) 1.2m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 24000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.152m³
    Packaging 4 - Weight (kg) 269.76kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
