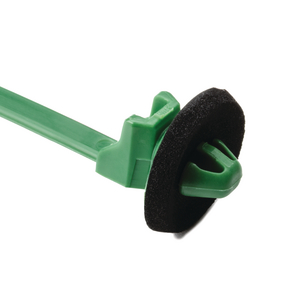

Fixing tie for hole (round), outside serrated, ∅1.5-30mm, green, 500pcs.
Art.-Nr. 126-00216 | T50SOSSFT6.5E-MD-PA66HS-GN |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors . We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water.
    Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
    Colour Green (GN)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SOSSFT6.5E-MD-PA66HS-GN
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family for round holes, sealed
    Product Group 1-piece fixing ties with arrowhead, with disc
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SOSSFT6.5E-MD
    Variant Outside Serrated
    Bundle Diameter max (metric) 30mm
    Bundle ∅ 1.5-30mm
    Bundle ∅ min. 1.5mm
    Disc ∅ 16mm
    Length (L) 158.8mm
    Min.Tensile Strength 180N
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 0.6 - 1.8 mm
    for Panel Thickness min - max 0 - 0.1 "
    Flammability UL 94 V2
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin SG
    GTIN-13 / EAN 4031026486628
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Show all
    Show all
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
