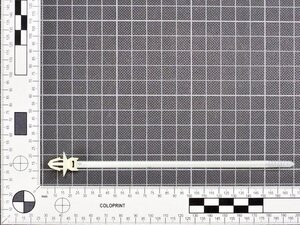

Fixing tie for hole (round), outside serrated, ∅1.5-35.0mm, natural, 500pcs.
Art.-Nr. 126-00066 | T50SOSSFT6.5E-MS-PA66HS-NA |  Details

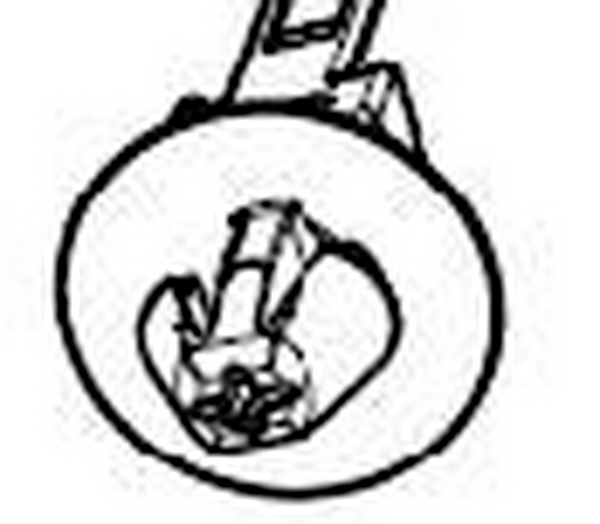

The disc at the head of the T50SOSSFT6.5E protects the bore against dirt and splashes.

    • Easy to install without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressures from various directions and minimises ingress of dust and dirt
    • Cable tie head always situated in a defined position
    • KSFT-types with specially rounded arrowhead minimise the assembly height
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application With a diverse range of fixing possibilities these ties are ideal for use in many different industries, including automotive, aerospace, white goods manufacture and panel building. This fastening solution is used to secure cable harnesses. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application.
    Colour Natural (NA)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SOSSFT6.5E-MS-PA66HS-NA
    Pack Cont. 500pcs.

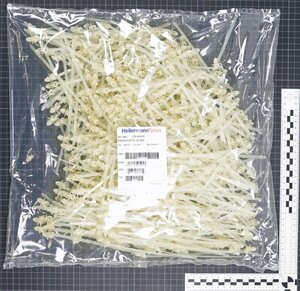

    Package Content packed in bag
    Product Family for round holes
    Product Group 1-piece fixing ties with arrowhead, with disc
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SOSSFT6.5E-MS
    Variant Outside Serrated
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.5-35.0mm
    Bundle ∅ min. 1.5mm
    Length (L) 163mm
    Min.Tensile Strength 180N
    Thickness (T) 1.3mm
    Weight/Unit 0.001501kg
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.25 - 6.75 mm
    for Panel Thickness min - max 1.9 - 2.2 mm
    for Panel Thickness min - max 0.1 - 0.1 "
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026279053
    Packaging 1 - Height (m) 0.06m
    Packaging 1 - Length (m) 0.44m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01188m³
    Packaging 1 - Weight (kg) 0.7865kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 8.685kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 125.22kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
    Show all
    Show all
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
