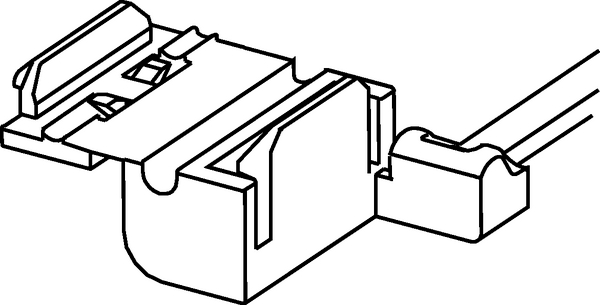

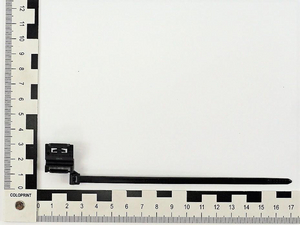

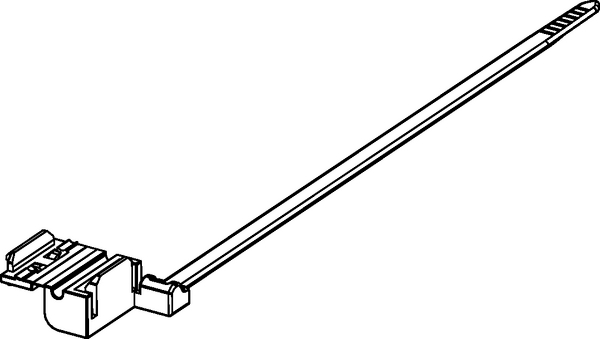

Fixing tie for cable bundles, outside serrated, ∅1.6-35.0mm, black, 500pcs.
Art.-Nr. 148-00096 | T50SOSWB3.4E-PA66HS-BK |  Details

T50SOSWA - The easy way for parallel guidance of cables next to a wire.

    • Cable tie head always in defined position
    • Easy to close by simply pressing the cover
    • Firm sit as a variation of sizes for different wires is available
    • Suitable for post-installation of bundles
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Identification Plate Position none
    Key product features lockable
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SOSWB3.4E-PA66HS-BK

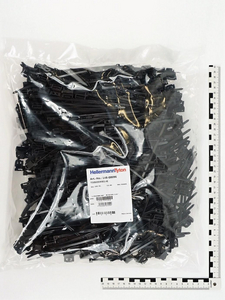

    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family for post-installation of bundles
    Product Group 1-piece fixing ties with wire clip
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SOSWB3.4E
    Attach to Diameter 0.13 "
    Attach to Ø 3.4
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.6-35.0mm
    Bundle ∅ min. 1.6mm
    Length (L) 150.0mm
    Min.Tensile Strength 225N
    Nominal ∅ 0.13"
    Nominal ∅ 3.4mm
    Thickness (T) 1.3
    Weight/Unit 0.002139kg
    Width (W) 4.6mm
    Wire Size Range (in²) 0.133 - 0.137"
    Wire Size Range (mm²) 3.37 - 3.49mm
    ∅ D 0.13"
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026431529
    Packaging 1 - Height (m) 0.07m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01244m³
    Packaging 1 - Weight (kg) 1.098635kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 9.60908kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 136.296kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
