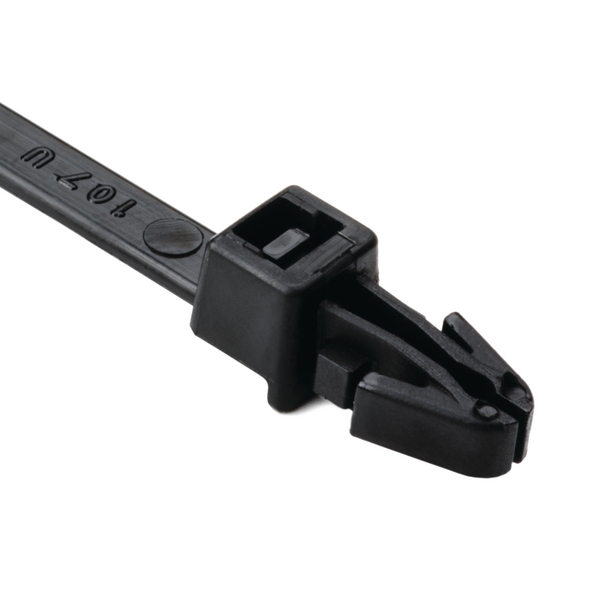

Fixing tie for hole (round), inside serrated, ∅1.5-35.0mm, black, 100pcs.
Art.-Nr. 126-00045 | T50SSF-PA66-BK |  Details

A wide range of arrowhead fixing ties which are suitable for different panel thicknesses and hole diameters.

    • Easy to assemble without the need for a tool
    • Cable tie head always situated in defined position
    • Arrowhead simply locks into place
    • Supporting legs provide a secure and firm fixing in areas where space is limited
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION T50SSF-PA66-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family for round holes
    Product Group 1-piece fixing ties with arrowhead, with wings
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SSF
    Variant Inside Serrated
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.5-35.0mm
    Bundle ∅ min. 1.5mm
    Height (H) 7.50mm
    Length (L) 159.0mm
    Min.Tensile Strength 225N
    Panel Thickness max. 1.0 - 3.56mm
    Width (W) 4.7mm
    for Hole ∅ (FH) 6.4 - 7.1 mm
    for Panel Thickness min - max 1 - 3.6 mm
    for Panel Thickness min - max 0 - 0.1 "
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL Type 11
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026422657
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.60801m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0506m³
    Packaging 3 - Width (m) 0.39688m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
