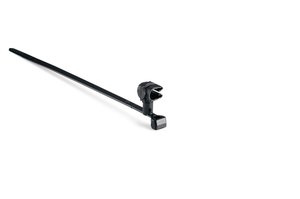

Fixing tie with pipe/tube holder, inside serrated, ∅2.0-35.0mm, black, 3000pcs.
Art.-Nr. 156-03373 | T50SVCMOC5M-PA66HS/PA66HIRHS-BK |  Details

T50SVC3.5, T50SVC6.5

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Omega Clip
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Key product features rotatable, for multiple routing, removable
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SVCMOC5M-PA66HS/PA66HIRHS-BK
    Pack Cont. 3000pcs.
    Package Content packed in bag
    Product Group 2-piece fixing ties with pipe clip
    Tie Closure plastic pawl
    Type T50SVCMOC5M
    Attach to Ø 4.0 - 5.5
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 2.0-35.0mm
    Bundle ∅ min. 2.0mm
    Cable Tie Head Height (metric) 6.0mm
    Cable Tie Head Width (metric) 8.6mm
    Length (L) 155.0mm
    Min.Tensile Strength 222N
    Thickness (T) 1.35mm
    Weight/Unit 0.001651kg
    Width (W) 4.7mm
    Width (W2) 10.0mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026659176
    Packaging 1 - Height (m) 0.095m
    Packaging 1 - Length (m) 0.435m
    Packaging 1 - Qty 400
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01302m³
    Packaging 1 - Weight (kg) 0.682215kg
    Packaging 1 - Width (m) 0.315m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
