18/04/2025

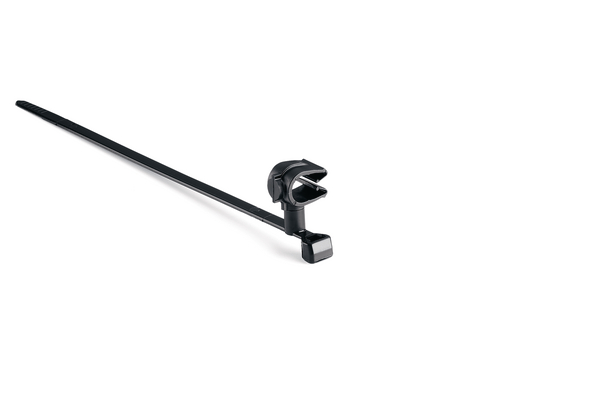

Fixing tie with pipe/tube holder, ⌀7.0-9.0mm, black, 2000pcs.
Art.-Nr. 156-02242 | T50SVCMOC8M-PA66HIRHSUV-BK |

Copied
Independent rotation allows for adjustable routing orientation.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable ⌀ max 35.0mm
    Cable ⌀ min 2.0mm
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features lockable, rotatable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50SVCMOC8M-PA66HIRHSUV-BK
    Pack Cont. 2000pcs.
    Package Content packed in pack
    Product Group 2-piece fixing ties with pipe clip
    Type T50SVCMOC8M
    Bundle ⌀ 7.0-9.0mm
    Bundle ⌀ max. 9.0mm
    Bundle ⌀ min. 7.0mm
    Bundle Diameter Nom. (ND) 8.0 mm
    Cable Tie Head Height (metric) 5.88mm
    Depth (D) 10.0mm
    Height (H) 26.1mm
    Length (L) 15.2mm
    Length (L2) 14.6mm
    Min.Tensile Strength 225N
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026717722
    Packaging 1 - Type carton
    Packaging 1 - Weight (kg) 200.83kg
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.517525m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Weight (kg) 4.43kg
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
