05/02/2025

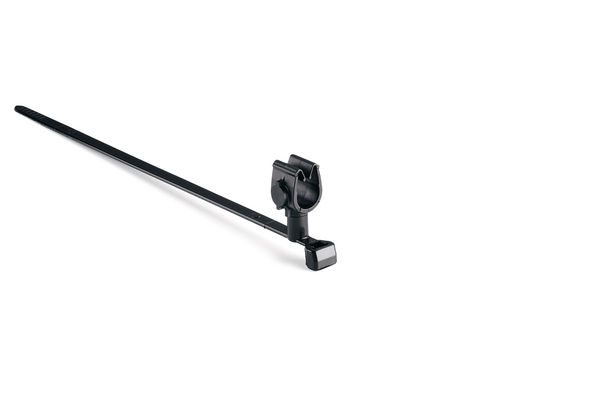

Fixing tie with pipe/tube holder, ⌀8.0-10.0mm, black, 1000pcs.
Art.-Nr. 156-02253 | T50SVCMOC9M180-PA66HIRHSUV-BK |  Details

Independent rotation allows for adjustable routing orientation.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable ⌀ max 35.0mm
    Cable ⌀ min 2.0mm
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features lockable, rotatable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION T50SVCMOC9M180-PA66HIRHSUV-BK
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Product Group 2-piece fixing ties with pipe clip
    Type T50SVCMOC9M180
    Bundle ⌀ 8.0-10.0mm
    Bundle ⌀ min. 8.0mm
    Bundle Diameter Nom. (ND) 9.0 mm
    Bundle Diameter max (metric) 10.0mm
    Depth (D) 10.0mm
    Height (H) 32.3mm
    Length (L) 15.0mm
    Length (L2) 15.4mm
    Min.Tensile Strength 225N
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026717838
    Packaging 1 - Weight (kg) 201.01kg
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
