23/02/2025

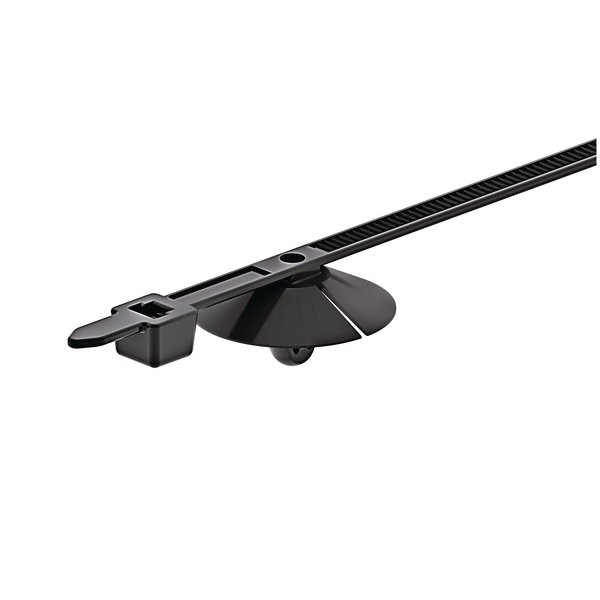

Fixing tie for hole (round), inside serrated, ⌀45.0mm, natural, 500pcs.
Art.-Nr. 150-15492 | T80RSFT-PA66HS-NA |  Details

The 'tab' on the head of the tie makes it easy to locate and lift the head for assembly.

    This product is not available anymore.
    • Easy to assemble without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressures from various directions and minimises access of dust, dirt and water
    • Cable tie head always situated in defined position
    • Bundle runs directly across fixing point
    • Simple assembly due to tab at the end of the head
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These fixing ties are ideal for use in many different industries, including automotive, aerospace and panel building.
    Colour Natural (NA)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T80RSFT-PA66HS-NA
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family T80RSFT for Panel thickness 1,0 - 3,5 mm
    Product Group 1-Piece Fixing Ties with Arrowhead, with Disc in the strap
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T80RSFT
    Variant Inside Serrated
    Bundle ⌀ 45.0mm
    Bundle Diameter max (metric) 45.0mm
    Disc ⌀ 24.4mm
    Length (L) 190mm
    Min.Tensile Strength 355N
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    for Hole ⌀ (FH) 5.7 - 6.3 mm
    for Panel Thickness min - max 1 - 3.5 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    GTIN-13 / EAN 4031026207414
    Packaging 1 - Qty 500
    Packaging 1 - Weight (kg) 0.8000kg
    Packaging 4 - Length (m) 1.20m
    Packaging 4 - Type pallet
    Packaging 4 - Width (m) 0.80m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
