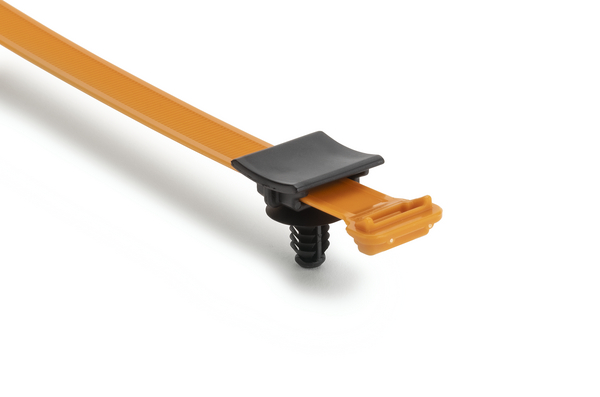

Fixing tie for hole (round), inside serrated, ⌀9.4-82.6mm, orange/black, 1200pcs.
Art.-Nr. 156-04035 | WSIDFTM8WSSDSET-PA66HIRHS/PA66HIRHSUV-OG/BK |

Copied

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Orange (OG), High Voltage (HV), Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION WSIDFTM8WSSDSET-PA66HIRHS/PA66HIRHSUV-OG/BK
    Pack Cont. 1200pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type WSIDFTM8WSSDSET
    Variant Inside Serrated
    Bundle ⌀ 9.4-82.6mm
    Bundle ⌀ max. 82.6mm
    Bundle ⌀ min. 9.4mm
    Height (H) 22.77mm
    Length (L) 307.0mm
    Min.Tensile Strength 533N
    Panel Thickness max. 0.6 - 6.0mm
    Width (W) 22.6mm
    for Hole ⌀ (FH) 6.1 - 7.0 mm, M8 Threaded
    for Panel Thickness min - max 0.6 - 6 mm
    for Panel Thickness min - max 0 - 0.2 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026665757
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Qty 1200
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Weight (kg) 9.5kg
    Packaging 3 - Width (m) 0.2921m
    Packaging 4 - Qty 28800
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
