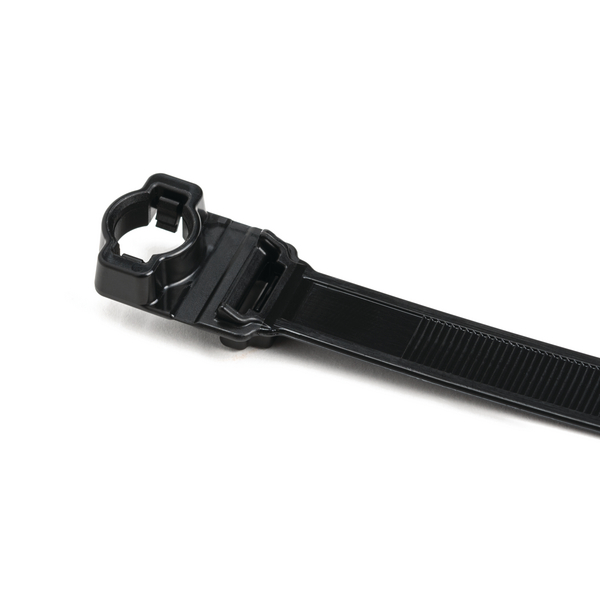

Fixing tie for stud, inside serrated, ∅9.5-105.0mm, black, 300pcs.
Art.-Nr. 157-00286 | WSR10MM-PA66HIRHSUV-BK |  Details

Wide strap cable tie with 10 mm stud mount.

    • One-piece fixing ties
    • High specification materials
    • Superior design
    • Suitable for complex applications
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Colour Black (BK)
    Fixation Method Stud Mount
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION WSR10MM-PA66HIRHSUV-BK
    Pack Cont. 300pcs.
    Package Content packed in bag
    Product Group 1-piece fixing ties for weld studs
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type WSR10MM
    Variant Inside Serrated
    Bundle Diameter max (metric) 105.0mm
    Bundle ∅ 9.5-105.0mm
    Bundle ∅ min. 9.5mm
    Length (L) 398.8mm
    Min.Tensile Strength 535N
    Stud ∅ 7/16"
    Stud ∅ M10
    Width (W) 12.7mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026575346
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Weight (kg) 10.32kg
    Packaging 3 - Width (m) 0.396875m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
