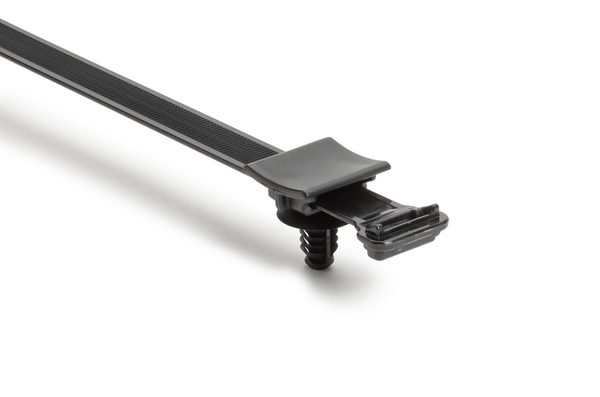

Fixing tie for hole (round), inside serrated, ∅9.4-57.15mm, black, 1200pcs.
Art.-Nr. 156-02462 | WSSDFTM10WSSDSET-PA66HIRHSUV-BK |  Details

These fir tree fixings can also be used in threaded, blind holes.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION WSSDFTM10WSSDSET-PA66HIRHSUV-BK
    Pack Cont. 1200pcs.
    Package Content packed in bag
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type WSSDFTM10WSSDSET
    Variant Inside Serrated
    Bundle Diameter max (metric) 57.15mm
    Bundle ∅ 9.4-57.15mm
    Bundle ∅ min. 9.4mm
    Height (H) 23.7mm
    Length (L) 231.14mm
    Min.Tensile Strength 533N
    Panel Thickness max. 0.6 - 6.0mm
    Width (W) 22.6mm
    for Hole ∅ (FH) 7.6 - 8.4 mm, M10 Threaded
    for Panel Thickness min - max 0.6 - 6 mm
    for Panel Thickness min - max 0 - 0.2 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026740478
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Width (m) 0.29209999999999997m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
