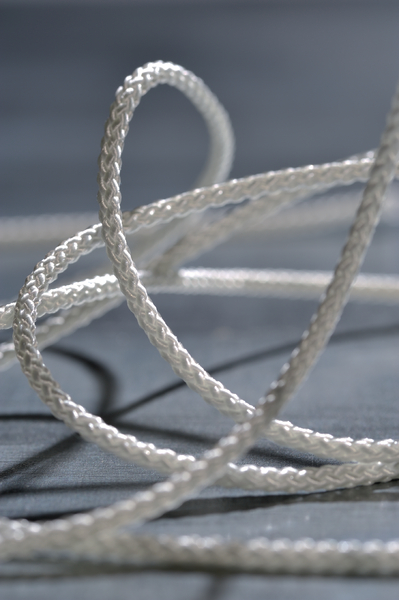

Lacing cord 200 m, PA66, natural
Art.-Nr. 174-00227 | LCHT1A25NA-PA66-NA |  Details

Lacing cord LCHT1A25NA.

    • General purpose lacing cord with high tensile strength
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Natural (NA)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION LCHT1A25NA-PA66-NA
    Pack Cont. 200m
    Package Content packed in reel
    Product Family Lacing cord LCHT1A25NA
    Product Group Lacing cord made of polyamide 6
    Short Description Lacing cord 200 m, PA66, natural
    Type LCHT1A25NA
    Diameter (D) 2.5mm
    Length (L) 200m
    Min.Tensile Strength 1250N
    Nominal ∅ 2.5mm
    Weight 2.84g/m
    Weight/Unit 0.0041kg
    ELV compliant (Article 4 - 2) YES
    Finish A = Uncoated
    Hazardous Goods No
    Lacing Shape Round, braided
    Operating Temperature -55 °C to +121 °C
    ROHS compliant Yes
    Specifications
    Specifications NSA8420
    Surface Finishing Shortcut A
    Surface finishing features general purpose
    Country of Origin FR
    Customs Number 56075011
    GTIN-13 / EAN 4031026272061
    Packaging 1 - Height (m) 0.16m
    Packaging 1 - Length (m) 0.16m
    Packaging 1 - Qty 200
    Packaging 1 - Type reel
    Packaging 1 - Volume (m³) 0.0041m³
    Packaging 1 - Weight (kg) 0.92kg
    Packaging 1 - Width (m) 0.16m
    Packaging 2 - Type carton
    Packaging 3 - Height (m) 0.385m
    Packaging 3 - Length (m) 0.38m
    Packaging 3 - Qty 1600
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0556m³
    Packaging 3 - Weight (kg) 7.91kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.299m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 28800
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.247m³
    Packaging 4 - Weight (kg) 163.38kg
    Packaging 4 - Width (m) 0.8m
    Reel Length 200m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
