22/12/2024

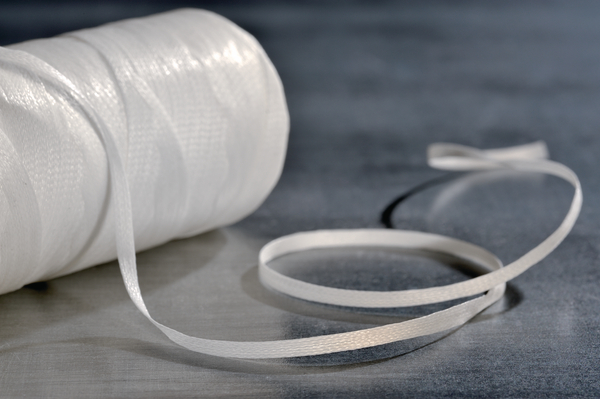

Lacing tape 250 m, PA66, natural
Art.-Nr. 174-00229 | LTHT1B2NA-PA66-NA |  Details

    • High tensile strength
    • Surface finishing with fungicide
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Natural (NA)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION LTHT1B2NA-PA66-NA
    Pack Cont. 250m
    Package Content packed in reel
    Product Family Lacing tape LTHT1B2NA and LTHT1B3NA
    Product Group Lacing tape made of polyamide 6
    Short Description Lacing tape 250 m, PA66, natural
    Type LTHT1B2NA
    Variant Endless
    Diameter (D) 3mm
    Length (L) 250m
    Min.Tensile Strength 362N
    Thickness (T) 0.3mm
    Thickness (T) 0.30-0.46mm
    Weight 0.7g/m
    Weight/Unit 0.00074kg
    Width (W) max. 3.07mm
    Width (W) min. 2.51mm
    ELV compliant (Article 4 - 2) YES
    Finish B = Microcrystalline fungicide wax
    Hazardous Goods No
    Lacing Shape Flat, braided
    Operating Temperature -55 °C to +121 °C
    ROHS compliant Yes
    Specifications
    Specifications A-A-52080, NSA8420
    Surface Finishing Shortcut B
    Country of Origin FR
    Customs Number 56075011
    GTIN-13 / EAN 4031026292915
    Packaging 1 - Qty 250
    Packaging 1 - Type reel
    Packaging 1 - Weight (kg) 0.185kg
    Packaging 3 - Height (m) 0.11m
    Packaging 3 - Length (m) 0.375m
    Packaging 3 - Qty 4250
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0074m³
    Packaging 3 - Weight (kg) 3.645kg
    Packaging 3 - Width (m) 0.18m
    Packaging 4 - Height (m) 1.244m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 510000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.194m³
    Packaging 4 - Weight (kg) 458.4kg
    Packaging 4 - Width (m) 0.8m
    Reel Length 250m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
