22/12/2024

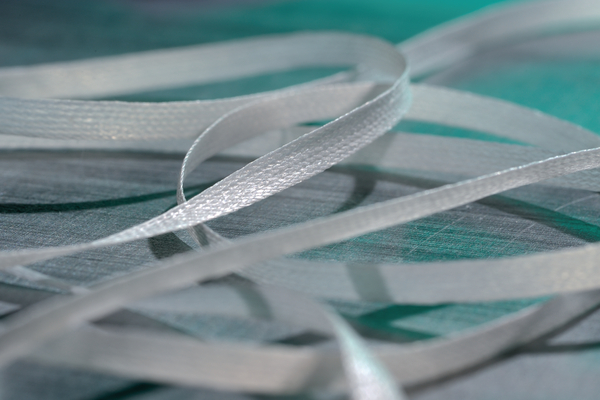

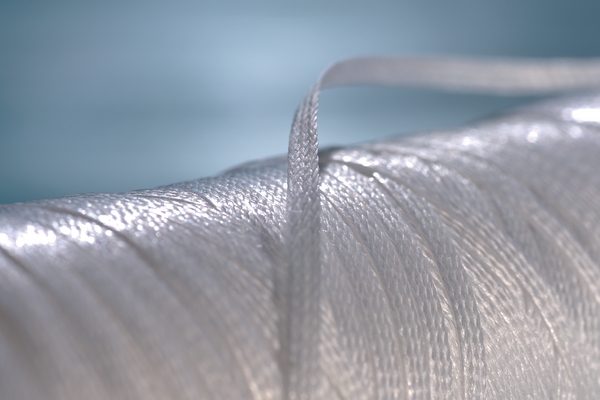

Lacing tape 700 m x 2,67 mm, PTFEHTM, natural
Art.-Nr. 174-00012 | LTHT3A2NA-PTFEHTM-NA |  Details

Lacing cord of the LTHT3A series.

    • Excellent resistance to high temperatures
    • Very good chemical resistance
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Natural (NA)
    Material Polytetrafluoroethylene, high tenacity multifilaments (PTFEHTM)
    PART DESCRIPTION LTHT3A2NA-PTFEHTM-NA
    Pack Cont. 700m
    Package Content packed in reel
    Product Family Lacing tape LTHT3A2NA and LTHT3A4NA
    Product Group Lacing tape made of PTFE
    Short Description Lacing tape 700 m x 2,67 mm, PTFEHTM, natural
    Type LTHT3A2NA
    Variant Endless
    Length (L) 700m
    Min.Tensile Strength 133N
    Thickness (T) 0.33mm
    Thickness (T) 0.27-0.43mm
    Weight 1.2g/m
    Weight/Unit 0.00145kg
    Width (W) 2.67mm
    Width (W) max. 3.35mm
    Width (W) min. 2.74mm
    ELV compliant (Article 4 - 2) YES
    Finish A = Uncoated
    Hazardous Goods No
    Lacing Shape Flat, braided
    Operating Temperature -73 °C to +232 °C
    ROHS compliant Yes
    Specifications
    Specifications A-A-52082, NSA8420
    Surface Finishing Shortcut A
    Country of Origin FR
    Customs Number 56075011
    GTIN-13 / EAN 4031026273259
    Packaging 1 - Height (m) 0.125m
    Packaging 1 - Length (m) 0.125m
    Packaging 1 - Qty 700
    Packaging 1 - Type reel
    Packaging 1 - Volume (m³) 0.00195m³
    Packaging 1 - Weight (kg) 1.015kg
    Packaging 1 - Width (m) 0.125m
    Packaging 3 - Height (m) 0.145m
    Packaging 3 - Length (m) 0.38m
    Packaging 3 - Qty 6300
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0209m³
    Packaging 3 - Weight (kg) 9.495kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.304m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 302400
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.252m³
    Packaging 4 - Weight (kg) 476.76kg
    Packaging 4 - Width (m) 0.8m
    Reel Length 700m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
