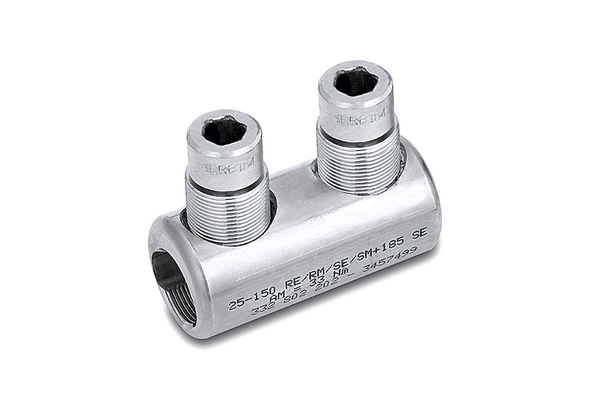

Mechanical connector, 25 - 150mm², ∅28mm, L=60mm, metal
Art.-Nr. 435-01505 | Mechanical connector 2515-ST-ML |  Details

    This product is not available anymore.

    Alternative product available

    • For connecting different conductor cross-sections
    • Suitable for aluminium and copper conductors
    • Tin-plated connector body with barrier and shear-off bolts
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Galvanised mechanical connector provided with barrier and shear-off bolts. Suitable for stranded and solid aluminium and copper conductors in all kind of cable accessories. They also comply with DIN 4740 requirements for shrinking technology.
    Colour Zinc-plated Metal (BV)
    Material Steel (ST)
    PART DESCRIPTION Mechanical connector 2515-ST-ML
    Pack Cont. 1pc.
    Package Content packed in pcs.
    Product Family Mechanical connector, tin-plated, with barrier and shear-off bolts for AI and CU conductors
    Product Group Connectors
    Short Description Mechanical connector 2515 ST ML
    Type Mechanical connector 2515
    Conductor Size Range mm² 25 - 150mm²
    Diameter (D) 28mm
    Length (L) 60mm
    Nut Size (NS) 8mm
    Weight/Unit 0.139kg
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Voltage Range up to 15kV
    Country of Origin DE
    Customs Number 85369010
    GTIN-13 / EAN 4250596412763
    Packaging 1 - Height (m) 0.052m
    Packaging 1 - Length (m) 0.028m
    Packaging 1 - Qty 1
    Packaging 1 - Type pack
    Packaging 1 - Volume (m³) 0.00004m³
    Packaging 1 - Weight (kg) 0.139kg
    Packaging 1 - Width (m) 0.028m
    ETIM 7.0 Key EC001063
    ETIM 8.0 Key EC001063
    ETIM 9.0 Key EC001063
