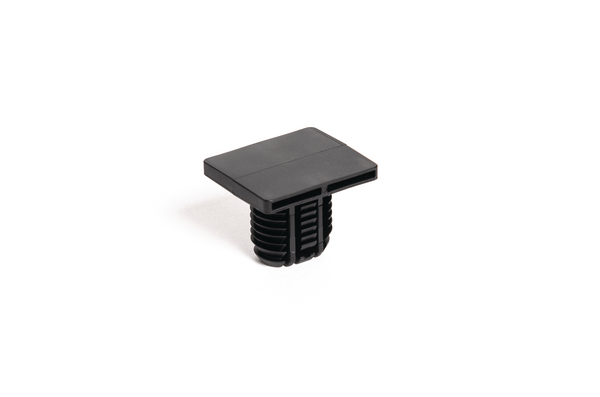

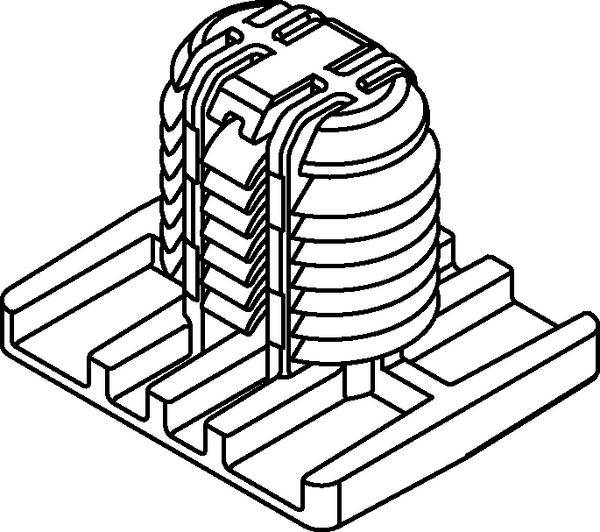

Blind plug, ∅12 x 17 mm, T=0.6 - 8.0mm, black, 2000pcs.
Art.-Nr. 133-03691 | 12x17PUSHPIN-PA66HIRHSUV-BK |  Details

    • Easy assembly without the need of a tool
    • Disc of the part covers the hole and minimises ingress of dust, dirt and water
    • Standard geometry for example fir tree or arrowhead
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Products were developed especially for the automotive industry. Application in trunks, doors, wheel housing and dash panels. Parts are even used for optical reasons.
    Colour Black (BK)
    Fixation Method Push Mount
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION 12x17PUSHPIN-PA66HIRHSUV-BK
    Pack Cont. 2000pcs.
    Package Content packed in bag
    Product Group Blind Plugs
    Type 12x17PUSHPIN
    Attach to Ø 12x17
    Depth (D) 24mm
    Fixing Hole Shape Oval
    Height (H) 21.35mm
    Hole Depth 0.6mm
    Hole Depth 8mm
    Length (L) 28mm
    Panel Thickness max. 0.6 - 8.0mm
    for Hole ∅ (FH) 12 x 17 mm
    for Panel Thickness min - max 0.6 - 8 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant No
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026599762
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Weight (kg) 8.47kg
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
