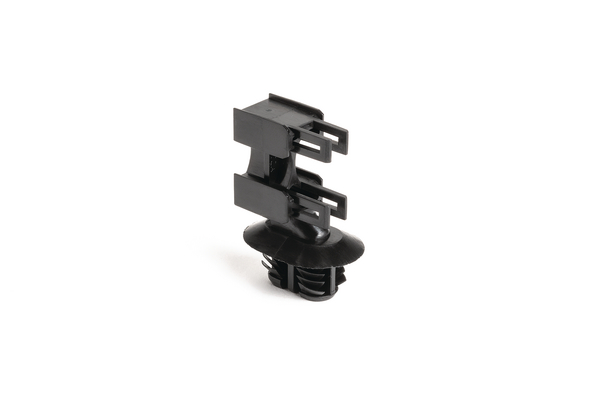

Connector clip for hole (oval), EWCAP-005-7, black, 2500pcs.
Art.-Nr. 151-02750 | 4FAKRACCBOX9X17OFT-PA66HIRHSUV-BK |

Copied

    • Connector clips provide a single method to mount connectors to various surfaces in a variety of applications.
    • Highly engineered designs feature anti-rattle discs, anti-rotation oval fir trees and clamps for mounting on edges.
    • A wide assortment of styles is available to fit the variety of connector slot designs made by most of the largest global connector manufacturers.
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION 4FAKRACCBOX9X17OFT-PA66HIRHSUV-BK
    Pack Cont. 2500pcs.
    Package Content packed in bag
    Type 4FAKRACCBOX9X17OFT
    Variant 9.0 x 17.0 mm
    Height (H) 37.8mm
    Length (L) 26.5mm
    Panel Thickness max. 0.6 - 2.25mm
    Weight/Unit 0.0034kg
    Width (W) 18.7mm
    for Hole ⌀ (FH) 9.0 x 17.0 mm
    for Panel Thickness min - max 0.6 - 2.3 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026702377
    Packaging 1 - Qty 2500
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 8.500001kg
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 2500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Weight (kg) 9.270001kg
    Packaging 3 - Width (m) 0.3984625m
    Packaging 4 - Height (m) 1.239m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 37500
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.189m³
    Packaging 4 - Weight (kg) 160.05kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
