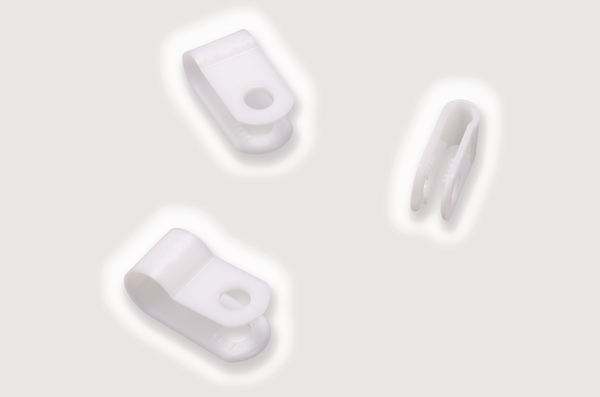

P-clamp closed, Dmax=4.5mm, ⌀4.3 mm, white, 100pcs.
Art.-Nr. 211-00277 | AB3N-PA66V0-WH |  Details

    • Manufactured from Polyamide
    • Good temperature resistance and high strength
    • Wide range of sizes for every application
    • Can be used without cable ties
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important.
    Colour White (WH)
    Fixation Method screw-hole
    Material Polyamide 6.6 V0 (PA66V0)
    Mounting Screw Type M4 Screw
    PART DESCRIPTION AB3N-PA66V0-WH
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family HP-Series
    Product Group Plastic P-Clamps
    Type AB3N
    Variant Closed
    Bundle ⌀ 4.5mm
    Bundle Diameter max (metric) 4.5mm
    Fixing Hole Centres (F) 10.3mm
    Wall (WT) 1.1mm
    Width (W) 9.5mm
    for Hole ⌀ (FH) 4.3 mm
    Flammability UL 94 V0
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<BR>Sustainable by design focuses on product solutions that reduce waste, improve longevity or support subsequent reuse and recyclability. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
    Sustainable by design focuses on product solutions that reduce waste, improve longevity or support subsequent reuse and recyclability.
    UV-Stabilised No
    Country of Origin JP
    GTIN-13 / EAN 4944387123579
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
