Bundling clip for hole (round), L=40.0mm, black, 500pcs.
Art.-Nr. 151-01335 | BC13FT6.35-PA66HIRHS-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION BC13FT6.35-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family Round holes
    Product Group Bundling Clips with Fir Tree for Distance Routing

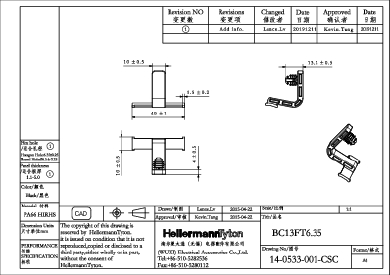

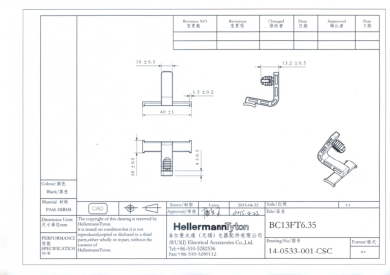

    Type BC13FT6.35
    Bundling Bar Length 40.0mm
    Height (H) 28.9mm
    Length (L) 40.0mm
    Length (L2) 22.0mm
    Panel Thickness max. 1.1-5.0mm
    Weight/Unit 0.000267kg
    Width (W) 27.9mm
    for Hole ∅ (FH) 6.35 mm
    for Panel Thickness min - max 1.1 - 5 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026515564
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.1335kg
    Packaging 3 - Height (m) 0.2m
    Packaging 3 - Length (m) 0.59m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.046m³
    Packaging 3 - Weight (kg) 1.621kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 53.42kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
