25/12/2024

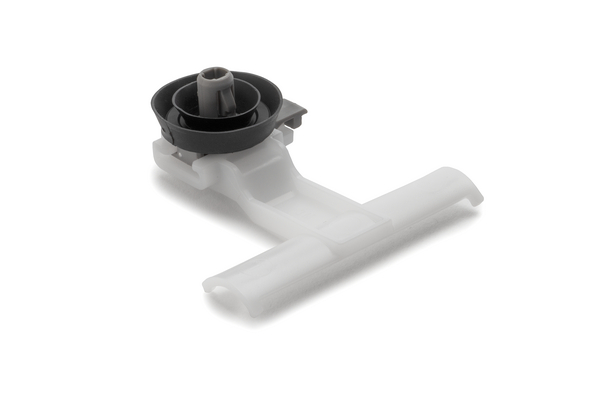

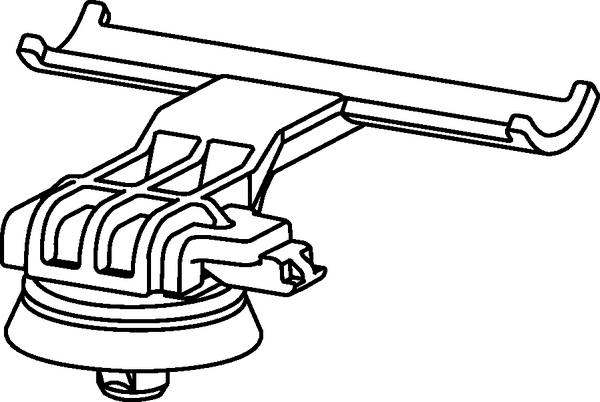

Bundling clip for hole (round), L=50.0mm, SO=31.8mm, natural/grey, 1000pcs.
Art.-Nr. 156-02962 | BC28OSSRAH1.4T-POM/TPE-GY/NA |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Natural (NA), Grey (GY)
    Material Polyacetal (POM), Thermoplastic Elastomer (TPE)
    PART DESCRIPTION BC28OSSRAH1.4T-POM/TPE-GY/NA
    Pack Cont. 1000pcs.
    Package Content packed in box
    Type BC28OSSRAH1.4T
    Bundling Bar Length 1.97"
    Bundling Bar Length 50.0mm
    Disc ∅ 22.3mm
    Height (H) 15.1mm
    Length (L) 50.0mm
    Offset Length 31.8mm
    Panel Thickness max. 1.2 - 1.8mm
    Width (W) 49.8mm
    for Hole ∅ (FH) 6.1 - 6.9 mm
    for Panel Thickness min - max 1.2 - 1.8 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +90 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026638614
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
