22/02/2025

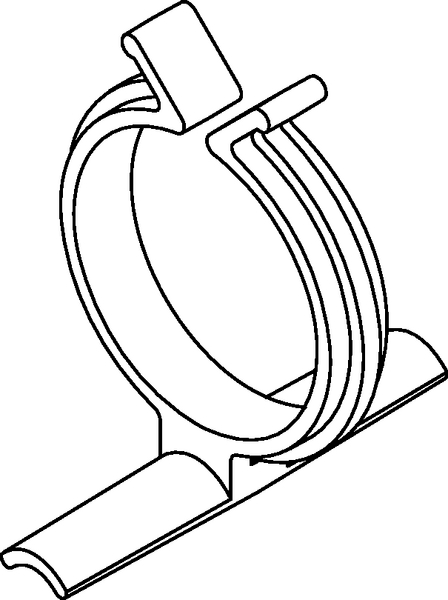

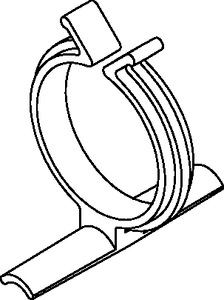

Bundling clip, L=50.8mm, SO=26.0mm, black, 1500Carton
Art.-Nr. 133-02797 | BC51C-PA66HIRHS-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION BC51C-PA66HIRHS-BK
    Pack Cont. 1500Carton
    Package Content packed in carton
    Type BC51C
    ⌀ D 1.28"
    Bundle ⌀ 32.4-32.6mm
    Bundle ⌀ min. 32.4mm
    Bundle Diameter max (metric) 32.6mm
    Bundling Bar Length 2.0"
    Bundling Bar Length 50.8mm
    Diameter (D) 32.5mm
    Height (H) 50.3mm
    Length (L) 50.8mm
    Offset Length 26.0mm
    Width (W) 8.7mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +115 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026580722
    Packaging 3 - Height (m) 0.352m
    Packaging 3 - Length (m) 0.572m
    Packaging 3 - Qty 1500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0703m³
    Packaging 3 - Weight (kg) 6.1kg
    Packaging 3 - Width (m) 0.349m
    Packaging 4 - Qty 27000
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
