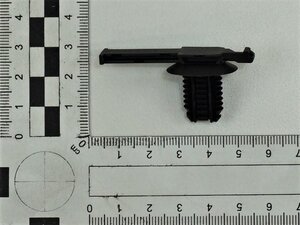

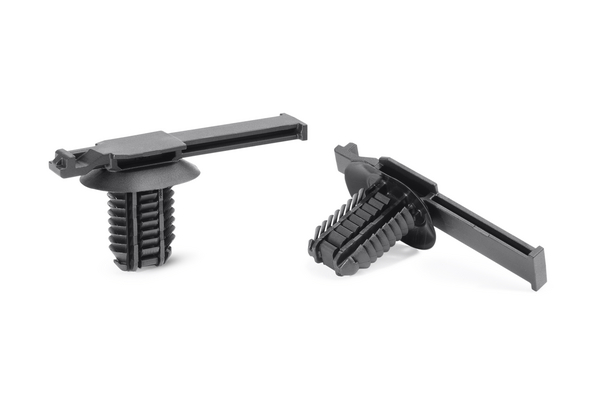

Connector clip for connector, black, 1000pcs.
Art.-Nr. 151-03511 | BCC51FTOVALL-PA66HIRHS-BK |  Details

Connector Clip for Connectors with 11.0 mm slot and Bundling Clip.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Connector Clip
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION BCC51FTOVALL-PA66HIRHS-BK
    Pack Cont. 1000pcs.

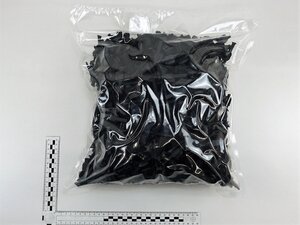

    Package Content packed in bag
    Type BCC51FTOVALL
    Type of connection USCAR11
    Height (H) 25.2mm
    Height (H2) 18.1mm
    Length (L) 51.0mm
    Panel Thickness max. 0.6 - 10.25mm
    Weight/Unit 0.00186kg
    Width (W) 17.3mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm
    for Panel Thickness min - max 0.6 - 10.3 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026672939
    Packaging 1 - Height (m) 0.13m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.02311m³
    Packaging 1 - Weight (kg) 1.889135kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 6000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 12.15481kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 72000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 166.848kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
